BTT MINI12864 V2.0

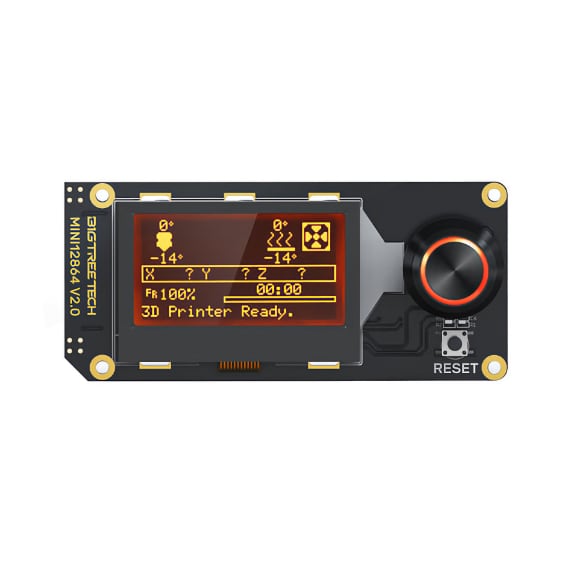

BIGTREETECH MINI12864 V2.0 is a compact 128×64 graphic LCD for compatible 3D-printer controller boards. Use it when you want a small rotary-control display with RGB backlight and an onboard full-size SD card slot instead of a touchscreen panel.

Why this display

• Compact graphic LCD: 128×64 resolution on an approximately 2.4-inch MINI12864 display.
• RGB backlight: BIGTREETECH documents multi-color RGB backlight support on the V2.0 board.
• Onboard SD slot: full-size SD card slot on the display board for file and firmware workflows supported by your controller and firmware.
• BTT ecosystem fit: intended for compatible BIGTREETECH / SKR-style 3D-printer controller boards; pair it with a board such as the BTT Manta M8P Control Board or BTT Manta M5P Control Board when your wiring and firmware support a 12864 display.

Specifications

• Manufacturer: BIGTREETECH / BIQU
• Model: MINI12864 V2.0
• Display type: 12864 graphic smart display with rotary encoder
• Resolution: 128×64 pixels
• Screen size: approximately 2.4 inches
• Backlight: RGB multi-color backlight
• Storage slot: full-size SD card slot on the display PCB
• Firmware context: Marlin-supported display family; Klipper setups need a matching display configuration for the controller board and cable pinout.

Fitment notes

• Good for Voron, Ender, Prusa i3 / RepRap-style, and other custom builds using compatible BTT/SKR-style display headers.
• Check the controller-board manual before wiring: EXP/display header pinouts vary by board and revision.
• Looking for the older sibling? See the Mini 12864 Display.

What it is not

• Not a touchscreen, HDMI screen, Raspberry Pi display, or standalone controller.
• Not guaranteed plug-and-play on every board; firmware configuration and cable orientation still matter.
• Do not rely on audible beeper behavior without checking the exact board revision and firmware support.
