Mini 12864 Display

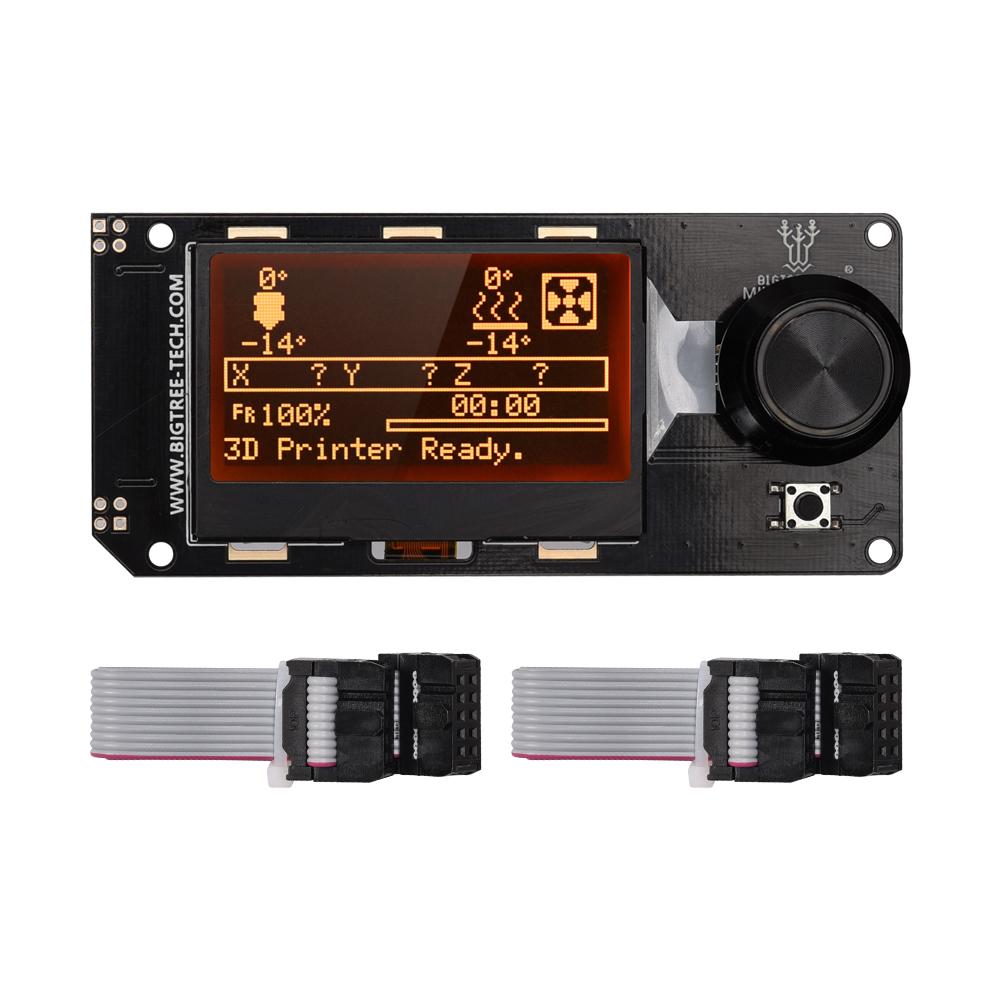

BigTreeTech Mini12864 V1.0 control display for 3D printer builds. This is the compact BTT 12864 LCD panel with RGB backlight, rotary encoder, front push button, and two EXP ribbon cables shown in the product photo.

Why use this display

• Compact 128 × 64 LCD interface for printer menus, tuning, and status at the machine.
• RGB-backlit Mini12864 format documented in BigTreeTech's official Mini12864 V1.0 repository and user manual.
• Includes the knob-and-button control layout builders expect from Mini12864 panels.
• Useful for Marlin or Klipper builds where the controller board and firmware are configured for a Mini12864-style EXP display.

Specifications

• Brand: BigTreeTech / BTT
• Model: Mini12864 V1.0
• Display: 128 × 64 LCD
• Backlight: RGB backlight
• Controls: rotary encoder knob plus front push button
• Included: display board and two EXP ribbon cables, as pictured

Fitment notes

• Best for custom 3D printer electronics bays that are already wired and configured for a Mini12864 display.
• Check your controller-board pinout and firmware display definition before powering it. EXP cable orientation matters.
• Not a touchscreen, not an HDMI screen, and not a plug-and-play replacement for every stock printer display.
