ZF CHERRY WRG32F2BBRLN Rocker Switch
$3.99
1
More payment options at checkout

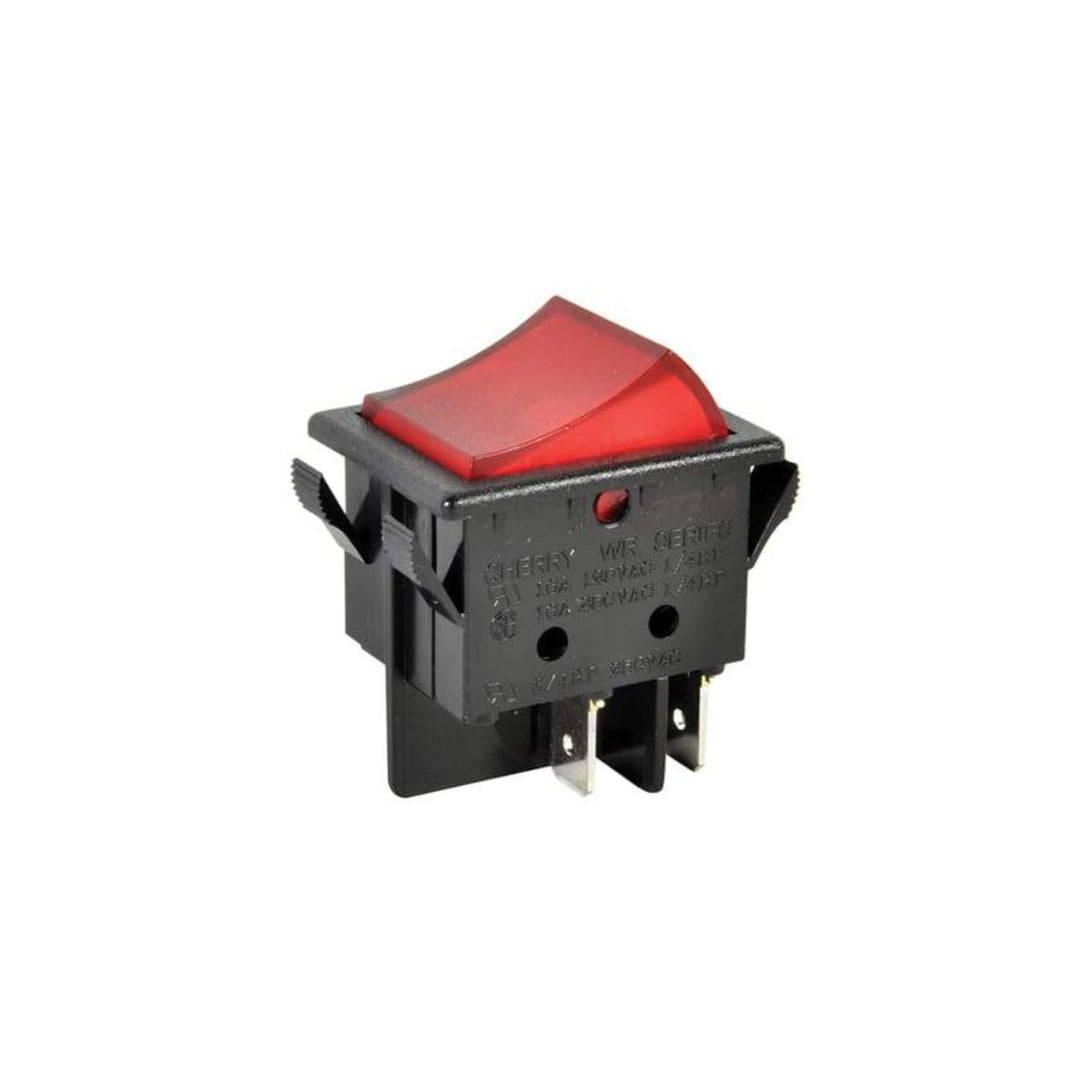

Illuminated DPST mains rocker switch for printer power wiring. ZF / Cherry WRG32F2BBRLN is a panel-mount, ON-OFF, double-pole rocker switch with a red lighted actuator, 6.4 mm quick-connect terminals, and a 16 A AC contact rating.
Why use this switch
- Double-pole switching: switches both conductors in AC inlet or printer mains wiring where a DPST rocker is specified.
- Illuminated red actuator: the 125 VAC lamp gives a clear powered-on indication on 120 V builds.
- Panel-mount snap-in body: WR Series housing is made for rectangular panel cutouts and quick assembly.
- Real ZF / Cherry part: ZF documents the WR Series as the continuation of Cherry-branded rocker switches.
Specifications
- Manufacturer part number: WRG32F2BBRLN
- Series: ZF WR Series rocker switch
- Function / circuit: ON-OFF, DPST
- Electrical rating: 16 A at 125 VAC / 16 A at 250 VAC; 1/4 HP 125 VAC, 3/4 HP 250 VAC
- Illumination: red lighted actuator, 125 VAC lamp
- Terminals: 6.4 mm / 0.250 in quick-connect tabs
- Mechanical life: minimum 10,000 operations
- Agency file: UL E23301
Fitment and pairing
Use it where your wiring plan calls for a separate illuminated DPST power rocker. Pair it with a fused AC inlet such as the Qualtek 719W-00/03 power entry module, replacement 8A 5x20 mm ceramic fuses, and insulated female spade terminals for clean mains wiring.
Gotchas
- This is a loose panel-mount rocker switch, not a fused IEC inlet module.
- The indicator lamp is the 125 VAC version; use it for 120 V illuminated-switch builds, not as a universal 240 V lamp indicator.
- Mains wiring should be installed only by someone competent with AC wiring and your printer's electrical standard.
