26AWG Stranded FEP Wire x 10m
$11.99
1
More payment options at checkout

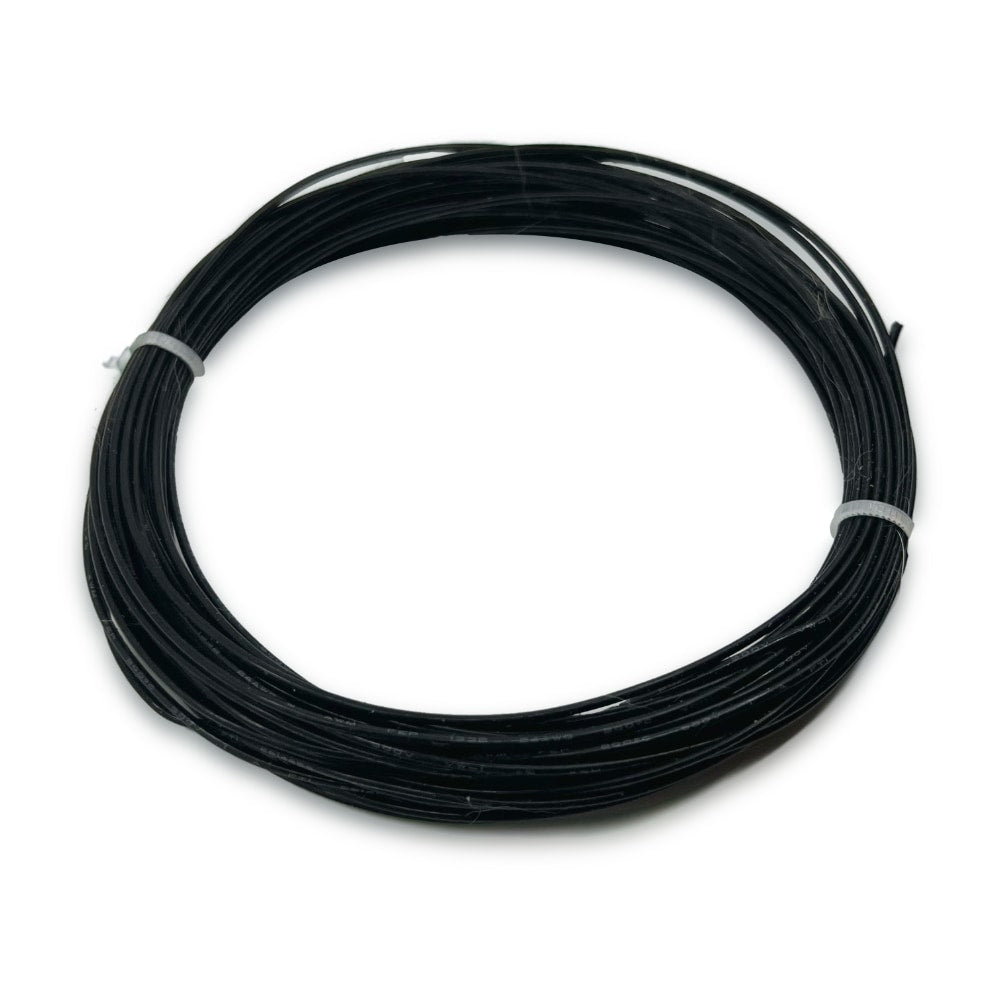

10 m of 26 AWG stranded wire with FEP (fluorinated ethylene propylene) insulation for low-voltage 3D-printer wiring where a small, flexible conductor has to live near a hot toolhead, cable chain, or enclosed-printer wiring path.
Why FEP instead of basic PVC hookup wire
- Better heat margin around the toolhead. FEP insulation is used for high-temperature electronics wire, so it is a safer choice than ordinary PVC when the route passes near a hotend, heated chamber, or tight toolhead harness.
- Thin wall, cleaner bundles. FEP insulation keeps the outside diameter down, which matters in Voron-style cable chains, umbilicals, and toolhead looms.
- Stranded conductor. This is stranded, not solid-core wire, so it is the right format for wiring that moves, bends, or needs to be dressed cleanly inside a printer.
Specifications
- Conductor size: 26 AWG stranded copper
- Insulation: FEP, thin-wall fluoropolymer insulation
- Length: 10 m / 32.8 ft
- Color: black, as shown
- Use class: low-voltage 3D-printer signal and light-duty harness wiring
Intended use — 3D printer wiring
- Toolhead harnesses where 30 AWG feels too delicate but 24 AWG is bulkier than needed.
- Stepper motor extension pigtails, endstop loops, probe wiring, fan leads, LED leads, and longer low-current signal runs.
- Voron, Klipper, ERCF, and other enclosed-printer builds where heat-resistant, flexible wiring is preferred.
- Pairs cleanly with JST-XH connectors and Micro-Fit 3.0 connector kits for printer harness work.
Decision guide — which FEP wire gauge do you want?
| Gauge | Best for | Why this gauge |
|---|---|---|
| 30 AWG stranded FEP | Thermistors, probes, endstops, LEDs, and very tight signal bundles | Thinnest and most flexible option for low-current signal wiring |
| 26 AWG stranded FEP (this listing) | Stepper pigtails, longer signal runs, toolhead harnesses, small fans | More current headroom and lower voltage drop while still staying compact |
| 24 AWG stranded FEP | Higher-current fan leads, short heater pigtails, and heavier harness sections | Thicker conductor when the load needs more margin |
What this wire is NOT for
- Heated bed power. Bed wiring needs a much larger conductor sized for the actual bed current.
- AC mains. Use properly rated mains cable and terminals for inlet, PSU, and bed mains wiring.
- Long high-current heater runs. For heater cartridge power, size the wire to the current, run length, connector, and printer safety requirements.
- A substitute for checking current draw. Match wire gauge to the load before wiring motors, heaters, or accessories.
Use this 26 AWG FEP wire when you want a tougher, slightly more forgiving harness wire than 30 AWG without building a bulky loom.
