QUALTEK ELECTRONICS 719W-00/03
$2.99
1
More payment options at checkout

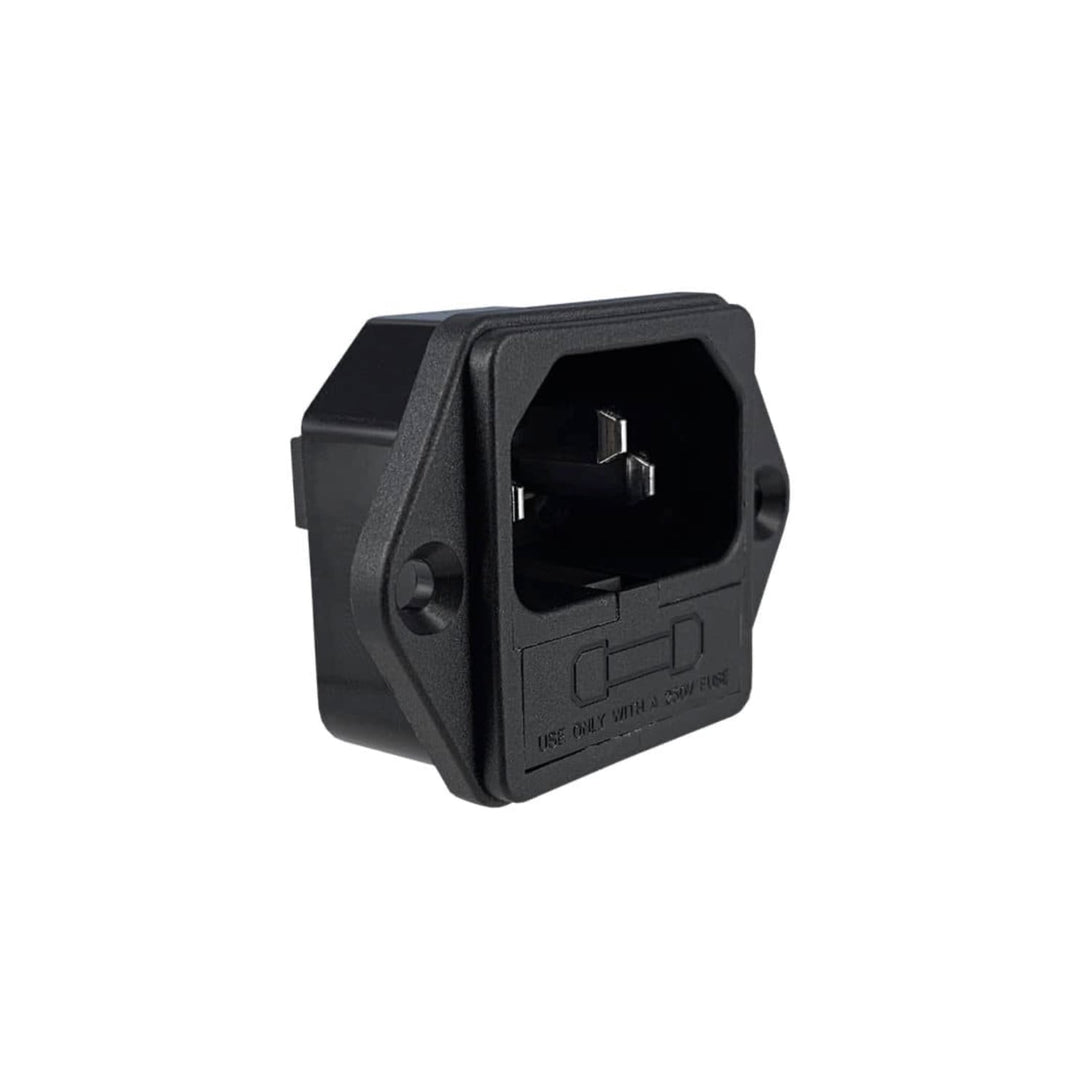

Qualtek 719W-00/03 fused IEC C14 power inlet for panel-mounted AC mains entry. This black screw-mount module combines an IEC 60320 C14 inlet with a dual 5 x 20 mm fuse holder, one active fuse position plus one spare, and 0.187 in quick-disconnect / solder-tab terminals.
Why this inlet
- Combines the mains inlet and fuse storage in one compact panel module.
- 10A at 250VAC rating fits typical enclosed electronics, printer control boxes, and other AC-powered equipment when the system design calls for a fused C14 entry.
- Screw-mount, countersunk flange gives a serviceable mechanical mount instead of a snap-in-only panel cutout.
- 0.187 in quick-disconnect / solder-tab terminals support standard wiring service workflows.
Specifications
- Manufacturer: Qualtek Electronics
- MPN: 719W-00/03
- Connector: IEC 60320 C14 male inlet
- Rating: 10A, 250VAC
- Fuse holder: dual 5 x 20 mm holder, one active and one spare
- Fuses: not included
- Terminals: 0.187 in quick-disconnect / solder tab
- Panel mount: screw mount, countersunk flange
- Color: black
- Approvals: UL, CSA, TUV, CCC per Qualtek
Use and fitment
Use this where your electronics enclosure, printer control box, or mains-input panel is designed for a fused IEC C14 inlet. Pair it with the correct 5 x 20 mm fuse rating for your build; the live catalog includes an 8A 250V 5 x 20 mm fuse option. For a separate panel switch, see the ZF Cherry WRG32F2BBRLN rocker switch.
Gotchas
- This is an unfiltered power-entry module; it is not an EMI/RFI filtered inlet.
- Fuses are not included. Match fuse current rating, voltage rating, time characteristic, and breaking capacity to the equipment documentation.
- Mains-voltage wiring is not a guesswork job: verify panel cutout, grounding, wire gauge, terminal insulation, strain relief, and local code requirements before installation.
