Voron V0 Kirigami Bed Wiring and LED Kit

LDO Kirigami bed wiring and LED hardware for Voron V0. This kit collects the small electronics that make a Kirigami bed install cleaner: the LDO Neopixel/front LED PCB, the Kirigami breakout/splicer PCB, the breakout wire kit, and two WAGO 221-412 lever connectors.

Why this kit

• Matches the LDO Kirigami wiring path documented for Voron V0/V0.2 builds.

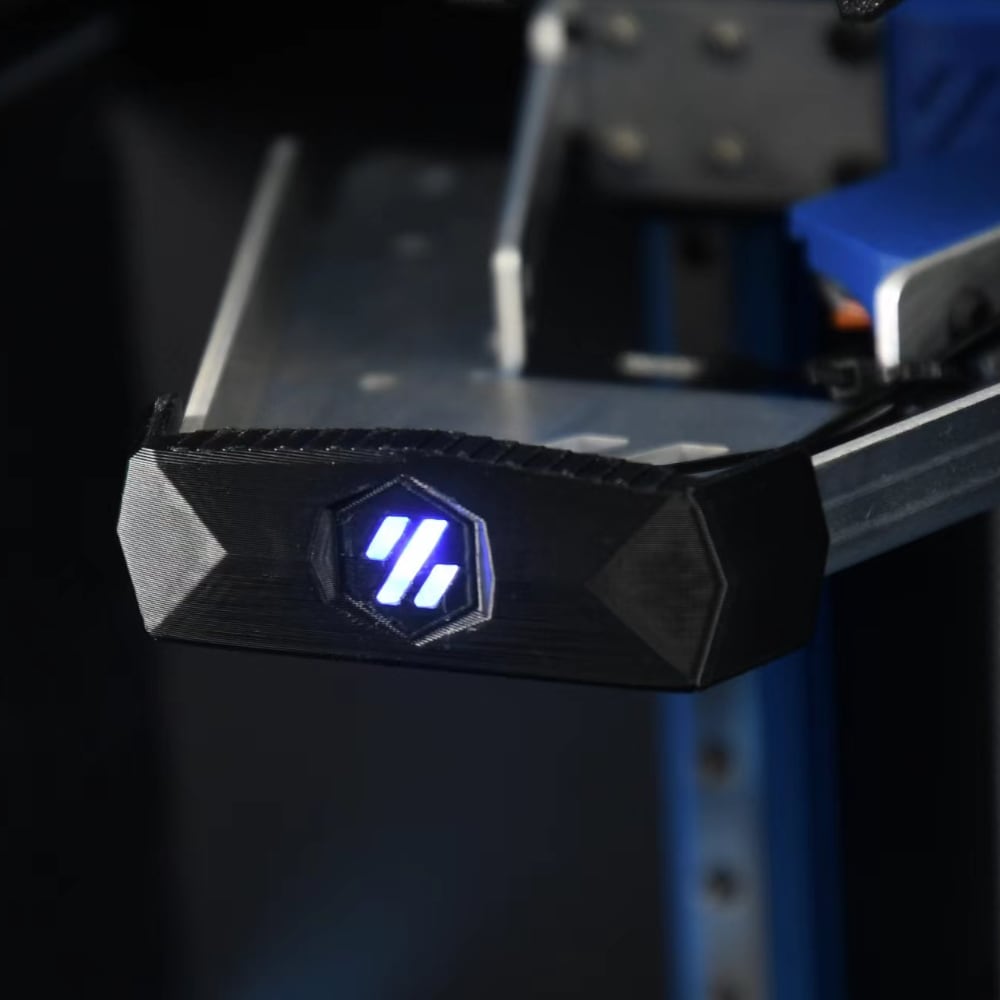

• Adds the front Neopixel/status light hardware used with the Kirigami bed front and diffuser.

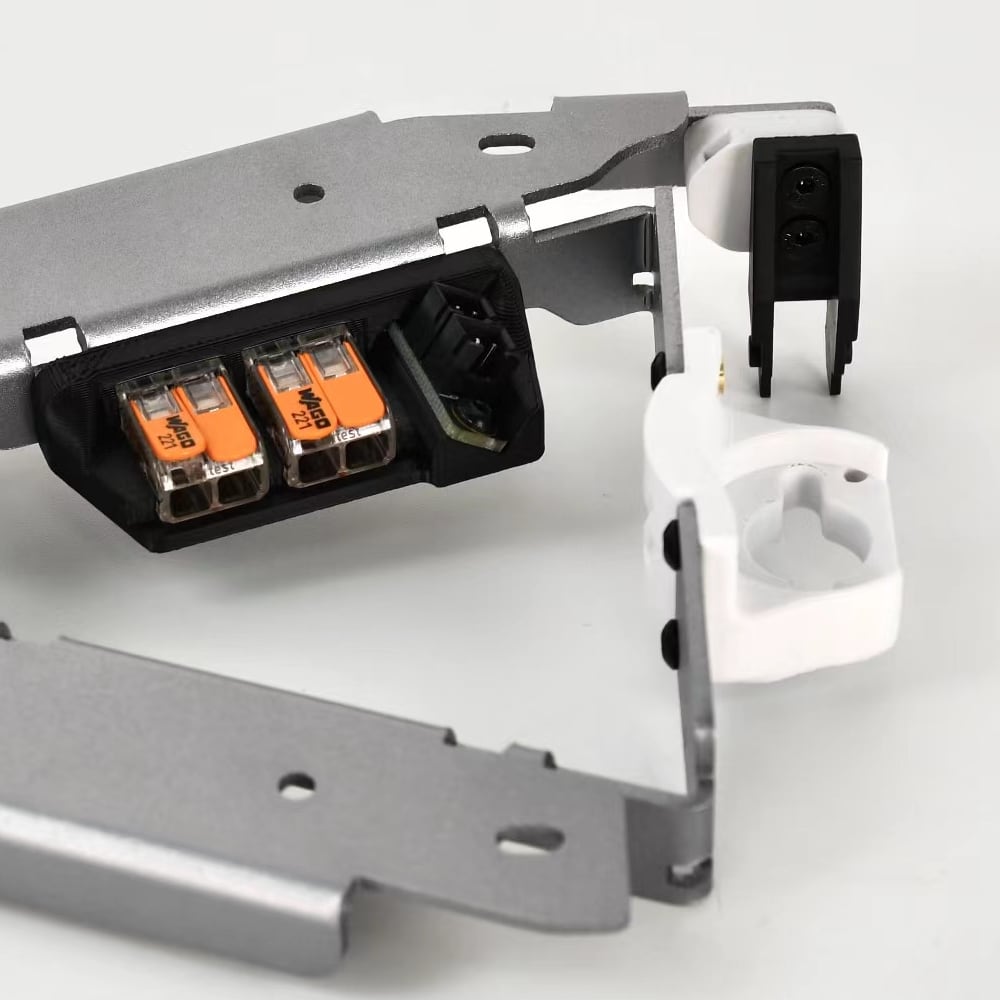

• Uses WAGO 221-412 connectors for serviceable bed-heater wiring at the carriage.
• Keeps the bed wiring modular, so the heated bed can be installed or removed without reworking the full printer harness.

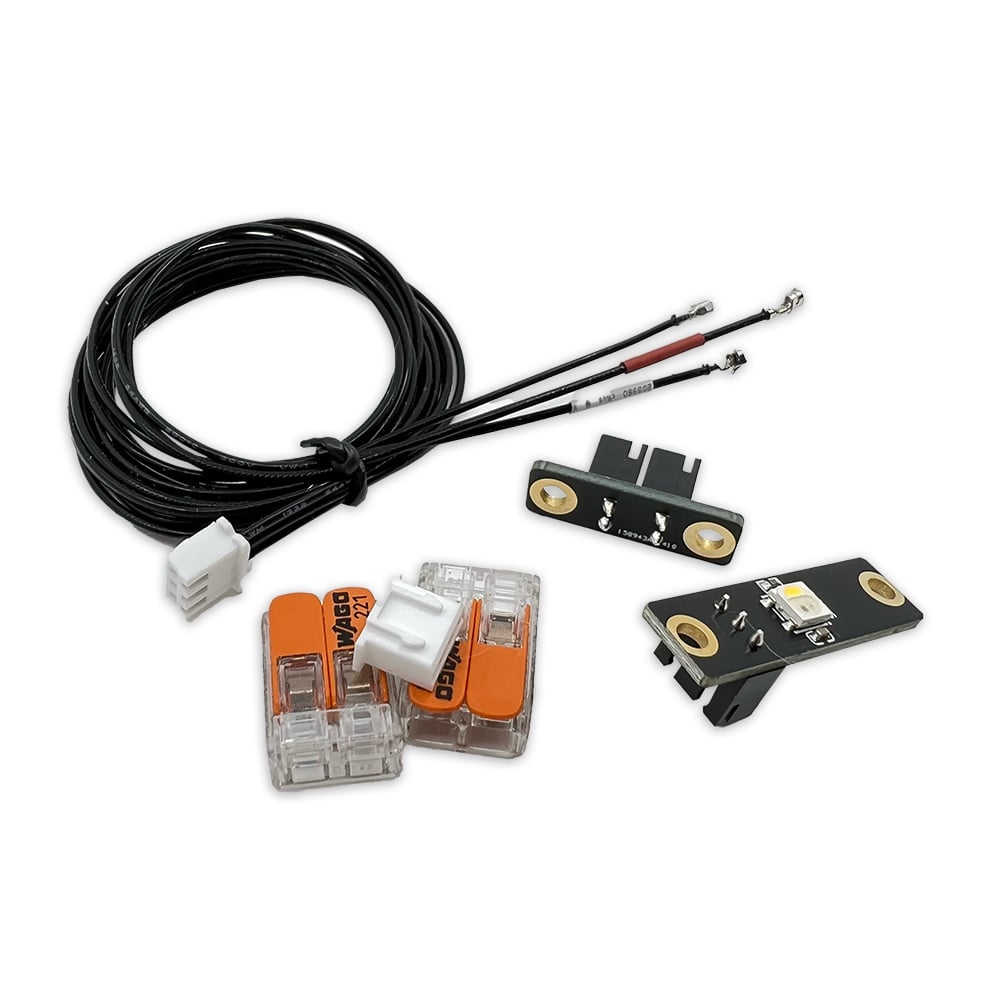

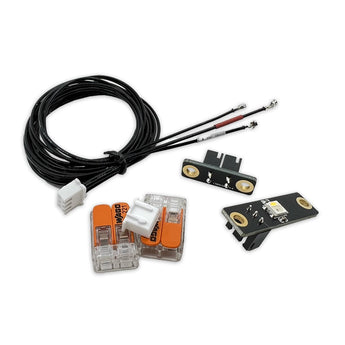

Included

• LDO Kirigami LED / Neopixel PCB
• LDO Kirigami breakout / splicer PCB
• LDO breakout wire kit
• WAGO 221-412 lever connectors x2

Fitment

For Voron V0 builds using a Kirigami bed setup, including the Kirigami Beds by Christoph Mueller. LDO's V0.2 documentation identifies the Kirigami bed wiring path, bed Neopixel cable, thermistor cable, and heater cable routing through the bed cable chain.

Install notes

• For the Neopixel cable, LDO documents red as 5V, white as DATA, and black as GND.
• The WAGO connectors are for bed-heater lead splicing; always verify polarity, insulation, and strain relief before powering the printer.
• This is the wiring / LED electronics kit only. It does not include the Kirigami metal bed carriage, heated bed, printed front body, diffuser, or full printer harness.
