Voron v0 Umbillical and Rear Connector Boards Pack
$16.99
- Color
1
More payment options at checkout

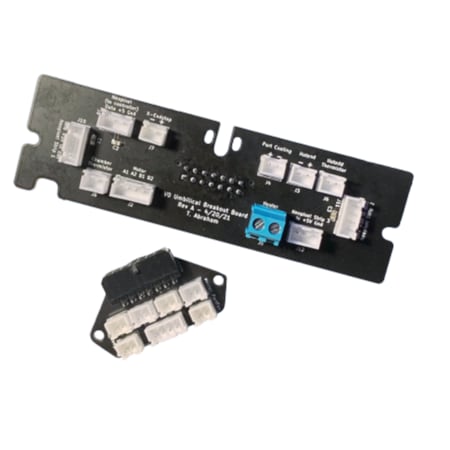

Two-board Voron V0.1 umbilical PCB set for cleaner, serviceable toolhead wiring. This pack is the assembled frame/rear connector board plus toolhead breakout board for the open-source Voron V0-Umbilical mod by Tim Abraham / timmit99.
Why use it
- Condenses heater, hotend thermistor, part-cooling fan, hotend fan, extruder motor, and X-endstop wiring into one 14-pin Micro-Fit 3.0 umbilical connection.
- Frame PCB mounts between the V0.1 A/B motors; toolhead PCB breaks the harness back out at the toolhead.
- Adds support for a chamber thermistor and three continuous WS2812 / NeoPixel strips.
- Toolhead PCB includes a second part-fan connector, so dual fans do not need to be spliced together.
Specifications
- Project: Voron V0-Umbilical, for Voron V0.1 wiring cleanup.
- Included boards: frame / rear PCB and toolhead PCB.
- Harness interface: 14-pin Micro-Fit 3.0, wired 1:1 per the official documentation.
- Board connectors shown in the official BOM include JST-XH headers, Molex Micro-Fit 3.0 sockets, a screw terminal, and onboard thermistor support.
- Available variants: black PCB or purple PCB.
Fitment and required extras
- Intended for Voron V0.1 builds using the timmit99 V0-Umbilical mod.
- The 14-pin umbilical cable, housings, crimps, printed mounts, and printer wiring are not included unless specifically shown in your cart.
- Pair it with the Molex Micro-Fit 14-pin connector and a JST-XH connector kit if you are building the harness from parts.
What it is not
- Not a control board or CAN toolhead board; it is a passive wiring breakout set.
- Not a complete cable harness; source or build the 220–240 mm dual-ended 14-pin Micro-Fit cable separately.
