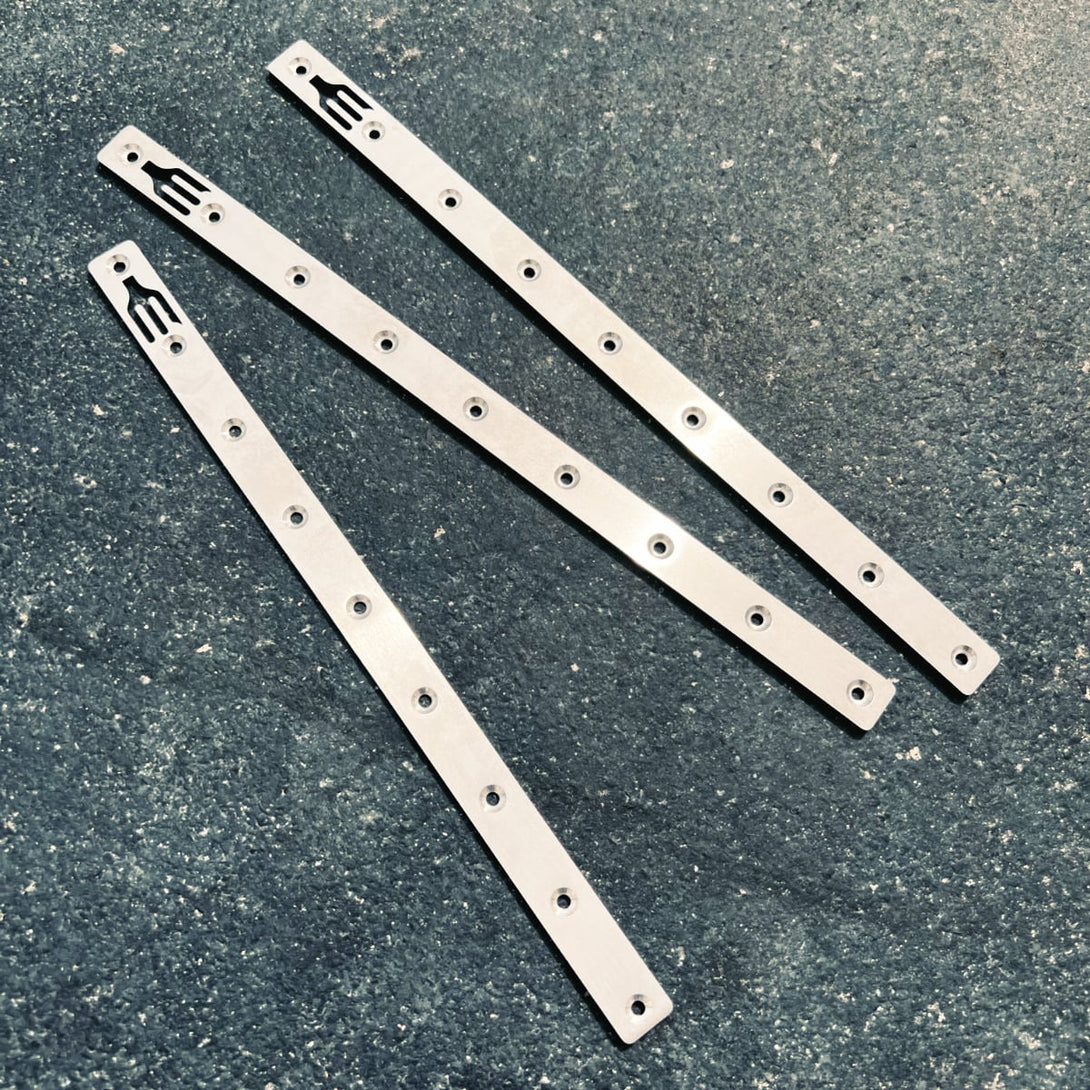

Titanium Extrusion Backers for Salad Fork 160mm - by Lightweight Labware

Titanium gantry extrusion backers for the Salad Fork 160mm build. These Lightweight Labware plates are sized for the 1515-extrusion Salad Fork and are based on whoppingpochard's open-source extrusion-backer design for counteracting gantry bow from rail/extrusion thermal expansion.

Why use titanium backers?

• Extrusion backers mount opposite the linear rails so the gantry is less prone to bimetal-style movement as the printer warms up.
• The original Voron mod documents titanium backers as a lighter, high-performance alternative to steel backer plates.
• Useful on compact enclosed machines where a small mesh shift can matter more than it looks on paper.

Specifications

• Machine fit: Salad Fork 160mm, a Printers for Ants printer based on a scaled-down Voron Trident using 1515 aluminum extrusion.
• Material: titanium backer plates.
• Variants: X and Y set, or Y backers only.
• Design source: based on the open-source whoppingpochard extrusion backers.

Fitment and pairing

• Built for Salad Fork 160mm machines.
• Pairs with the DFH 440C Salad Fork 160mm Linear Rails Kit, Salad Fork Motion Kit, and No-Drop Nuts for European Standard 1515 Extrusion.
• For Voron V2.4 / Trident-size builds, use the larger Titanium Extrusion Backers instead.

What it is not

• Not a full Salad Fork kit, frame kit, or rail kit.
• Not a generic 2020 Voron V2.4 / Trident backer set; this listing is for the 160mm Salad Fork size.
• Fasteners and T-nuts are not listed as included unless shown in the selected variant or order contents.
