Salad Fork Motors Kit
$99.99
1
More payment options at checkout
Motor set for a Salad Fork build. This kit covers the six stepper motors called for by the official Salad Fork BOM: three integrated-leadscrew Z motors, two NEMA14 A/B motion motors, and one NEMA14 pancake extruder motor.

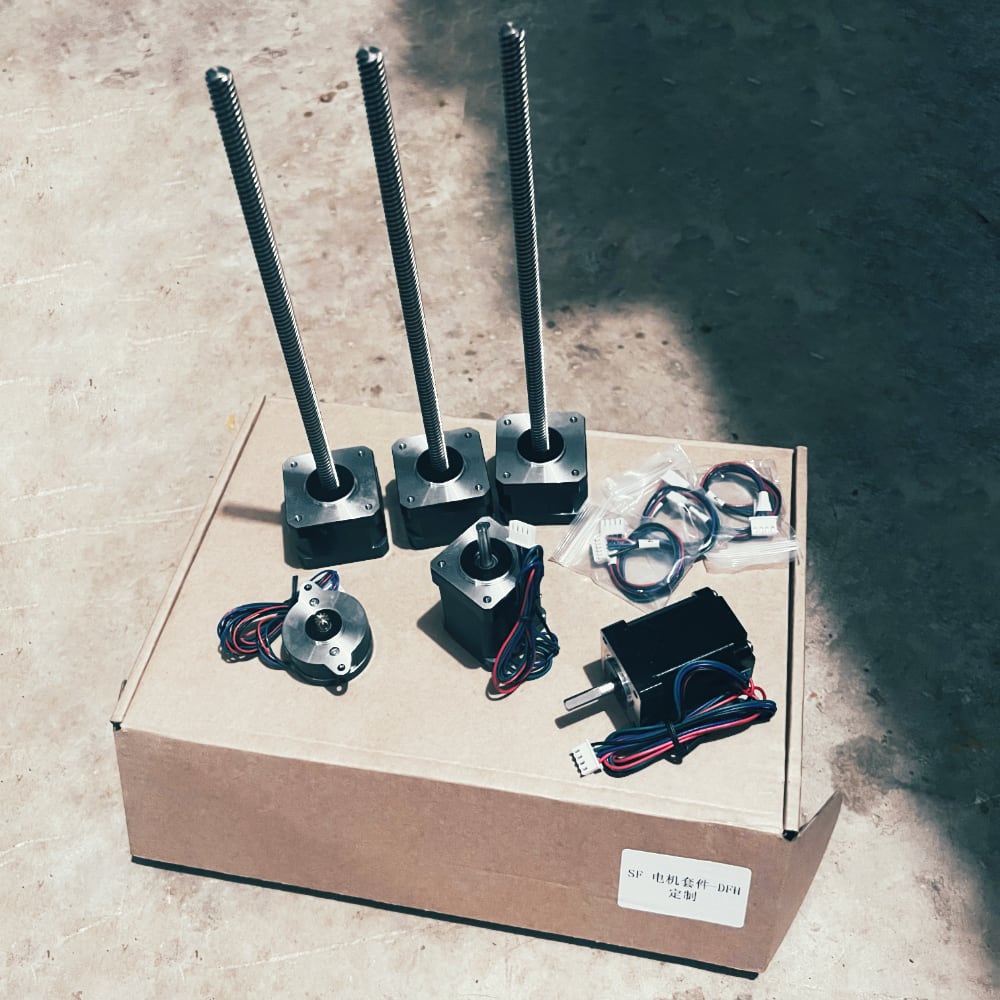

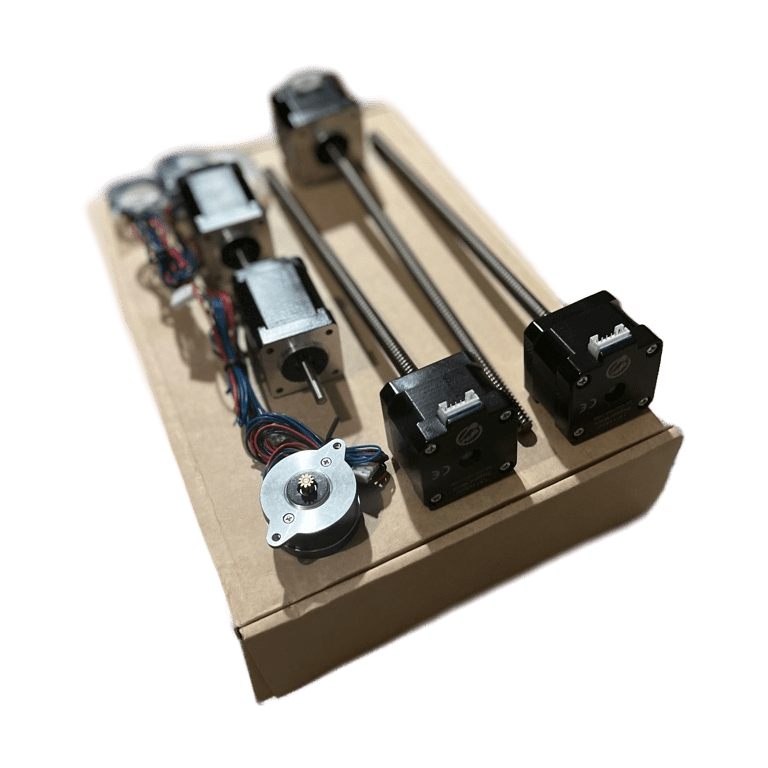

What is included
- 3 × DFH-42USC-200N81404B — NEMA17 integrated-leadscrew Z motors; the Salad Fork BOM specifies 200 mm T8x8 integrated leadscrew steppers for Z.
- 2 × DFH-14MCRN-1848 — NEMA14 A/B stepper motors; the Salad Fork BOM calls for 40 Ncm NEMA14 A/B motors.
- 1 × DFH-14MCRN-1815 — NEMA14 pancake stepper for the extruder position.
Intended use
For Printers for Ants Salad Fork builds — the small-format Trident-style printer that uses 1515 frame extrusion. Pair it with the live Salad Fork Motion Kit, DFH 440C Salad Fork 160mm Linear Rails Kit, and Salad Fork Fasteners Kit when sourcing the rest of the motion stack.
Fit notes
- Use for Salad Fork motor sourcing, not as a complete printer, frame, rails, electronics, or fastener kit.
- Your controller still needs enough stepper drivers for the machine; the official BOM calls out an MCU with at least six stepper drivers.
- Check your exact Salad Fork revision and build size against the official project BOM before final assembly.
