Igus Pressfit Bearing EGLM-05
$5.99
- Count
1
More payment options at checkout

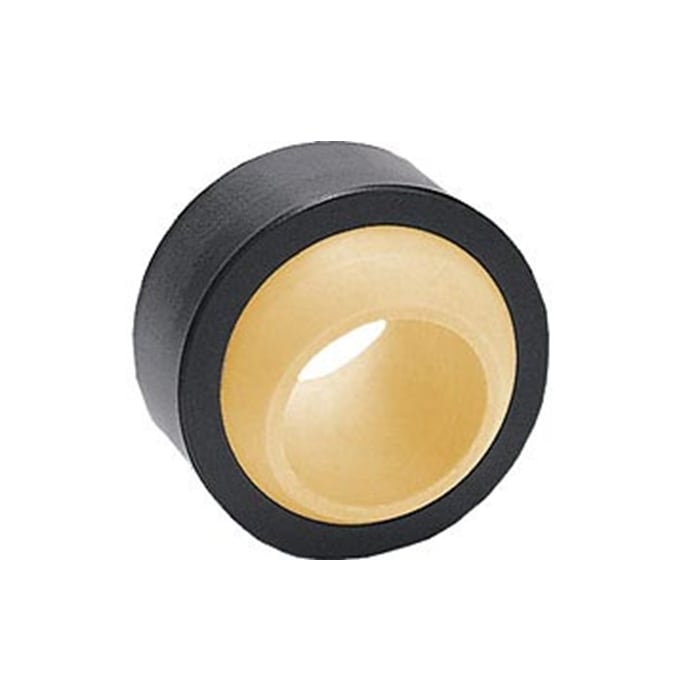

The Igus EGLM-05 is an igubal polymer spherical plain bearing and a direct drop-in for the steel GE5C, in the same 5x14 envelope. An iglidur L280 ball pivots inside an igumid G housing, so it self-aligns to absorb misalignment and edge loads while running dry, with no grease and no maintenance. It's lighter than the steel GE5C and corrosion-resistant, a common choice for Voron Tap and other pivoting printer joints.

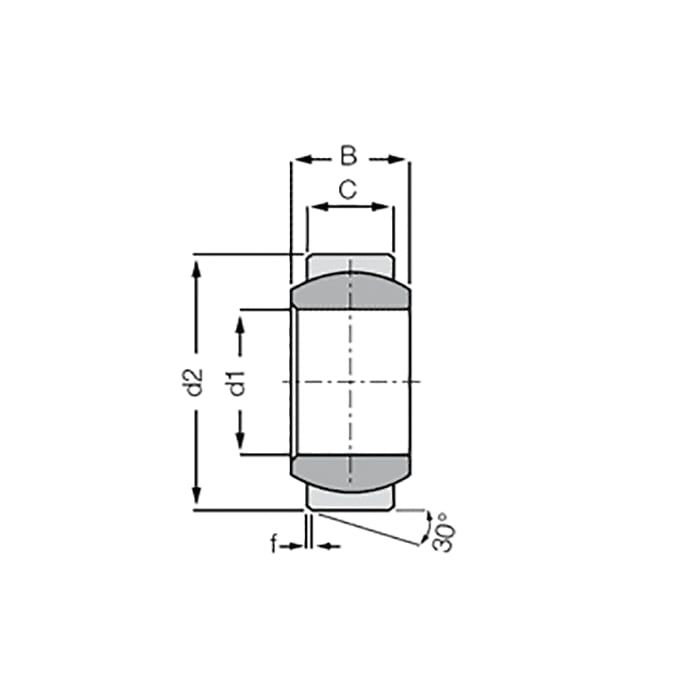

- Designation: EGLM-05 (igubal spherical, per ISO 12240)
- Bore (ID): 5mm
- Outer diameter (OD): 14mm
- Width: 6mm
- Housing: igumid G; ball: iglidur L280
- Press-fit into H7 bore; self-lubricating, -30 to +80C
Sold in quantity packs.
