TR8 8mm Anti-Backlash Lead Screw Nut - POM
$4.99
1
More payment options at checkout

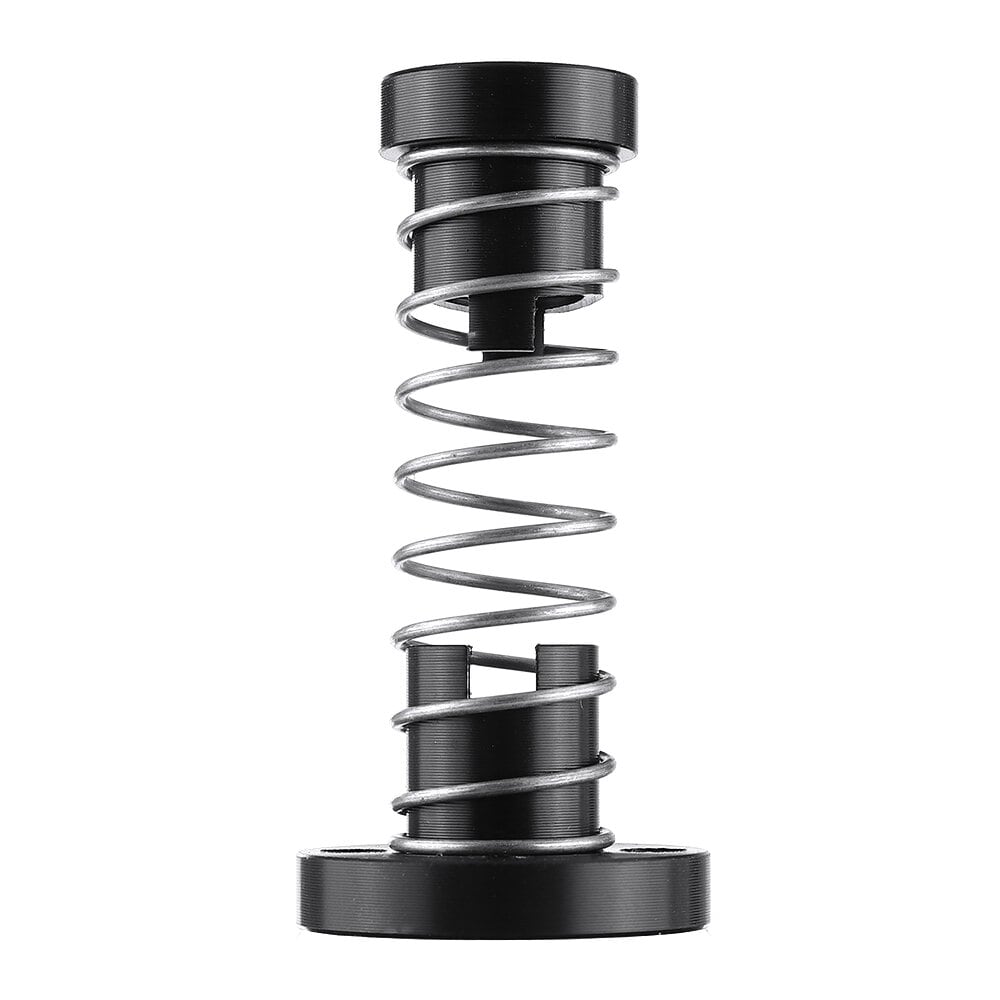

TR8x8 POM anti-backlash nut for 8mm lead-screw Z axes. This three-piece spring-preloaded flange nut reduces axial play in TR8/T8 lead-screw assemblies while keeping the sliding surface POM/Delrin for low friction and wear resistance.
Why use the POM anti-backlash style?
- Spring preload: the split nut halves push against opposite thread faces to take up backlash as the screw and nut wear.
- POM body: self-lubricating plastic contact surface, quieter and lower-friction than a plain metal nut in many printer Z-axis builds.
- Drop-in flange format: common round flange body for printer lead-screw mounts.
Specifications
- Thread: TR8x8 / T8x8 trapezoidal lead screw
- Lead: 8mm per revolution
- Pitch: 2mm
- Starts: 4-start thread
- Material: POM / Delrin nut body with steel preload spring
- Mounting: M3 fastener holes, 18mm hole-center spacing
- Includes: one complete anti-backlash nut assembly
Fitment
Use this with 8mm TR8x8 lead screws on Z-motion assemblies, including Voron V0.1/V0-style and Voron Trident builds. It also pairs with the live Salad Fork Motion Kit and Voron Trident Motion Kit when you need a replacement or spare lead-screw nut.
Not for
- TR8x2, TR8x4, or single-start lead screws; match the lead and starts before ordering.
- Applications that require a metal/brass nut or a different mounting pattern.
