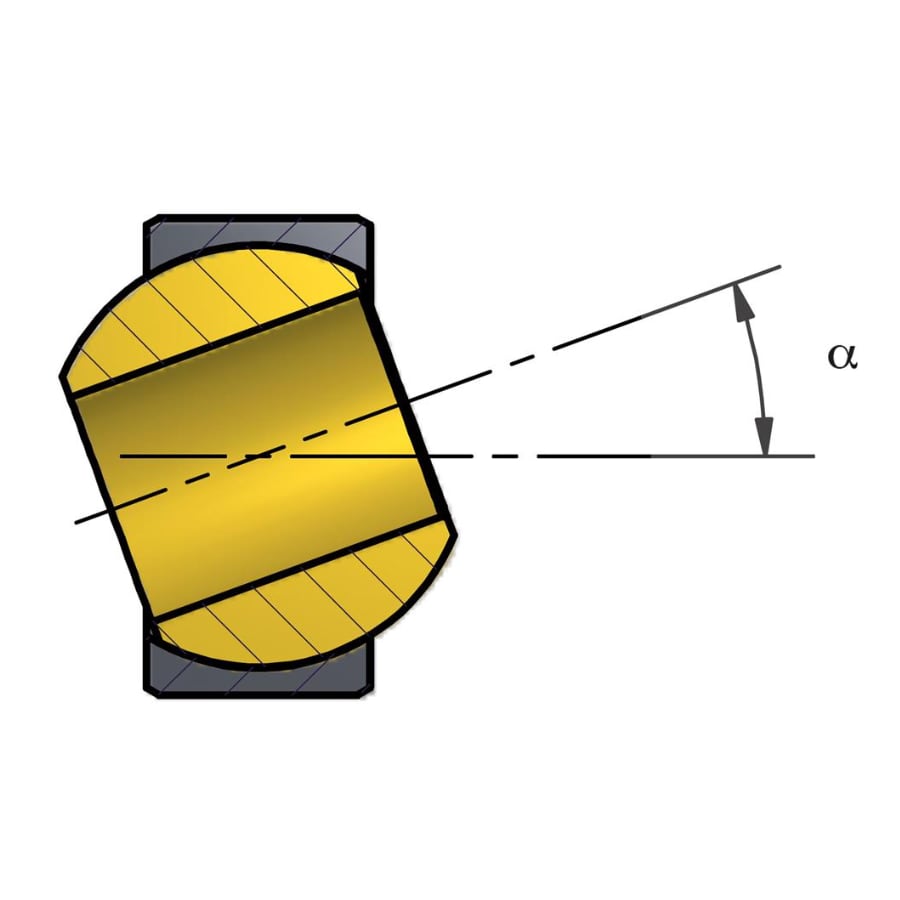

The Igus KGLM-03 is an igubal polymer spherical plain bearing for 3mm shafts. An iglidur L280 ball pivots inside an igumid G housing, so it self-aligns to compensate for misalignment and edge loads while running completely dry, with no grease and no maintenance. It's lightweight, corrosion-resistant and vibration-damping, suited to small pivoting and oscillating joints in 3D printers and similar mechanisms.

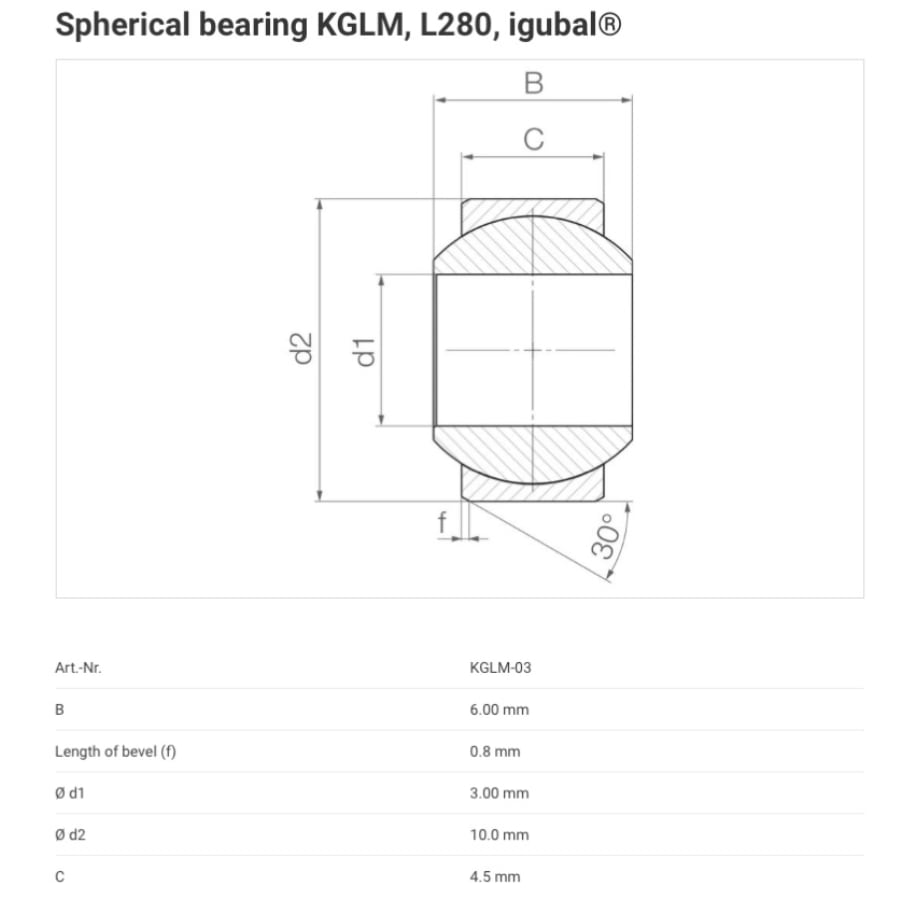

- Designation: KGLM-03 (igubal spherical, per DIN ISO 12240)
- Bore (ID): 3mm
- Outer diameter (OD): 10mm
- Height: 6mm
- Housing: igumid G; ball: iglidur L280
- Press-fit into H7 bore; self-lubricating, -30 to +80C
Sold in quantity packs.
