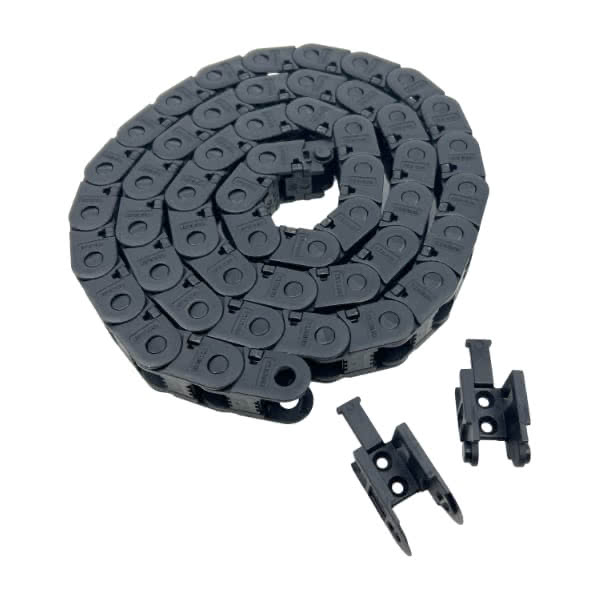

Igus E21-10-10-018 (50 links) and E2-100-10-34PZ Bracket Set
50 links (1.00331m) of Igus E21-10-10-018 cable chain and 2 matching E2-100-10-34PZ mounting brackets. Spec sheet available here. Model Number E2i-10-10-018-0 Inner width Bi [inch]: 0.39 (10mm) Bending radius R [inch]:...
Description
50 links (1.00331m) of Igus E21-10-10-018 cable chain and 2 matching E2-100-10-34PZ mounting brackets. Spec sheet available here.
| Model Number | E2i-10-10-018-0 |
| Inner width Bi [inch]: | 0.39 (10mm) |
| Bending radius R [inch]: | 0.71 (18mm) |
| Travel distance S [ft]: | 5.9 (1.79832m) |
| Fixed end dM [ft]: | 0 |
| Chain length** [ft]: | 3.2917 |
| Number of chain links: | 50 |
| External width Ba [inch]: | 0.69 (17.4 mm) |
| H* [inch]: | 2.01 (51 mm) |
| D [inch]: | 2.2 (56 mm) |
| K [inch]: | 3.94 (100 mm) |
| Hi [inch]: | 0.39 (10 mm) |
| Ha [inch]: | 0.59 (15 mm) |
| Weight per link [oz.]: | 0.1 (2.8 g) |
| Weight [lbs/ft]: | 0.094 (0.14 kg/m) |
Igus E21-10-10-018 (50 links) and E2-100-10-34PZ Bracket Set
$59.99
