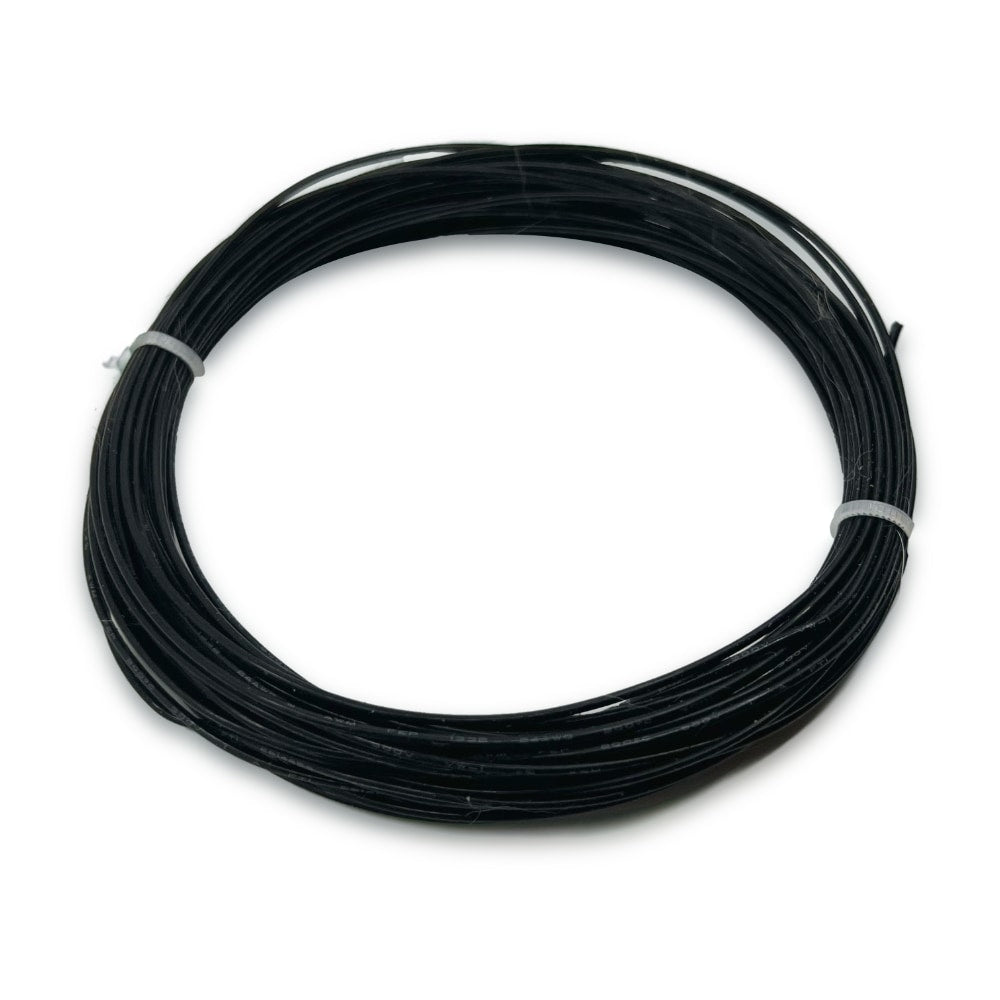

30AWG Stranded FEP Wire x 10m

10 m of 30 AWG stranded wire with FEP (fluorinated ethylene propylene) insulation for the small-signal and short-run wiring inside 3D printers — hotend harnesses, toolhead PCBs, fans, micro-switches, thermistor and probe leads, and stepper pigtails where you want a thin, flexible conductor that survives heat and won’t melt back when it sits against a hotend.

Why FEP instead of PVC

• Heat tolerance. FEP insulation is rated for continuous use to roughly 200 °C, so it sits happily right next to a hotend, heat-break or heated-chamber wiring path. PVC-insulated wire (the “hookup wire” from the parts bin) starts softening around 80 °C — fine in the electronics bay, not fine clipped to a Voron toolhead.
• Thin wall, small bend radius. FEP wall is much thinner than silicone or PVC for the same voltage rating, which is the whole point of running 30 AWG — you get a smaller bundle in tight cable chains and looms.
• Stranded core. This is stranded (multi-strand), not solid. It flexes with motion so it’s the right call for moving parts: cable chains, hinged panels, hotend docks, anything that bends on every print.

Specifications

• Conductor: stranded copper, 30 AWG (cross-section ~0.05 mm²)
• Insulation: FEP (fluorinated ethylene propylene), thin wall
• Continuous temperature rating: up to ~200 °C
• Voltage rating: 300–600 V class (insulation-class dependent — well above anything on a 12/24 V printer)
• Length: 10 m (32.8 ft) on a single spool
• Colors: one color per spool, randomly selected from stock

Intended use — 3D printer low-current signal wiring

• Hotend fan leads, hotend thermistor extension, hotend heater extension when you’re running a thin flexible tail.
• Endstop / probe signal wires, especially on Voron toolheads and Klicky / Voron Tap / Boop probes where a thin, flexible lead is the difference between the cable chain closing cleanly and not.
• Stepper motor extension pigtails where 4-conductor ribbon would be overkill.
• LED strips, panel indicators, neopixel / WS2812 data lines, small fans that draw well under an amp.
• Any 3D-printer signal path that needs to be thin, flexible, and survive the heat of a toolhead.

What this wire is NOT for

• Heated bed power. A 30 AWG conductor cannot safely carry the 5–15 A an AC or DC bed draws. Use 14–18 AWG silicone wire for the bed loop.
• Hotend heater cartridge power (long runs). Fine for a short pigtail right at the hotend; not the right wire for the long run from the SSR / MOSFET to the board.
• Stepper motor phase windings at full rated current. Steppers can pull 1–2 A per phase; 30 AWG is borderline for long motor extensions. Use 22–24 AWG for motor runs.
• AC mains. This is low-voltage signal / signal-and-low-power wire.

Decision guide — which of our FEP wires do you want?

Gauge	Best for	Why this gauge
30 AWG stranded (this listing)	Toolhead signal & short pigtails, fans, thermistors, endstops, neopixels	Thinnest, most flexible — for tight cable chains and short runs
26 AWG stranded	Stepper motor extensions, longer signal runs, micro-switch loops	Step up the current headroom and voltage drop while staying flexible
24 AWG stranded	Heater cartridge pigtails at the hotend, fans drawing more current, RGB data runs	Thicker conductor for higher current without going stiff

Stranded FEP wire — the standard “when in doubt, use this" 3D-printer signal wire. If you are wiring a Voron toolhead, an ERCF, a Stealthburner, a Klicky probe, or any short flexible sensor/fan lead on a hot printer, this is what you reach for.
