Fysetc Mini 12864 Display
$12.99
1
More payment options at checkout

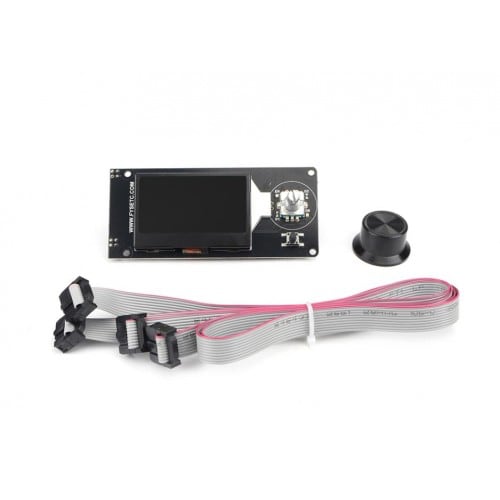

FYSETC Mini 12864 Type B display for 3D printers. A compact 128 x 64 LCD panel with rotary encoder, front SD access, RGB lighting, and EXP1/EXP2 ribbon-cable connection for Marlin/Klipper controller setups.
Why use this panel
- 2.4 in graphic LCD gives menu-driven control without relying on a host computer.
- Rotary encoder and push button handle menu navigation, tuning, and file selection.
- Front SD-card slot supports offline printing workflows when your firmware and controller expose SD printing.
- Type B FYSETC style matches FYSETC's RGB-backlight white-face Mini12864 variant.
Specifications
- Brand: FYSETC
- Panel family: Mini 12864 / MINI12864
- Display resolution: 128 x 64
- Display area: 2.4 in
- Interface: EXP1 / EXP2 RAMPS-style headers
- Firmware support: Marlin Mini Panel / FYSETC Mini 12864 profiles; Klipper configurations commonly use uc1701-style display setup
- Included in the FYSETC kit: display board, encoder knob, and two flat ribbon cables
Fitment and setup notes
- Works with compatible 3D-printer controller boards that expose matching EXP1/EXP2 display headers.
- For SKR Mini E3-style wiring, use the live SKR Mini v1/v2 screen adaptor by Timmit99 when your build needs that adapter path.
- If you want the BigTreeTech version instead, see the live Mini 12864 Display.
Gotchas
- This is a display module, not a mainboard or standalone controller.
- Connector orientation and EXP1/EXP2 mapping vary by controller brand; verify wiring before power-up.
- FYSETC documents an RST/KILL resistor caution for some boards, including S6/Spider-style cases where KILL may be routed to 5 V. Check the panel revision and board guide before use.
