SKR Mini v1/v2 screen adaptor by TImmit99
$9.99
1
More payment options at checkout

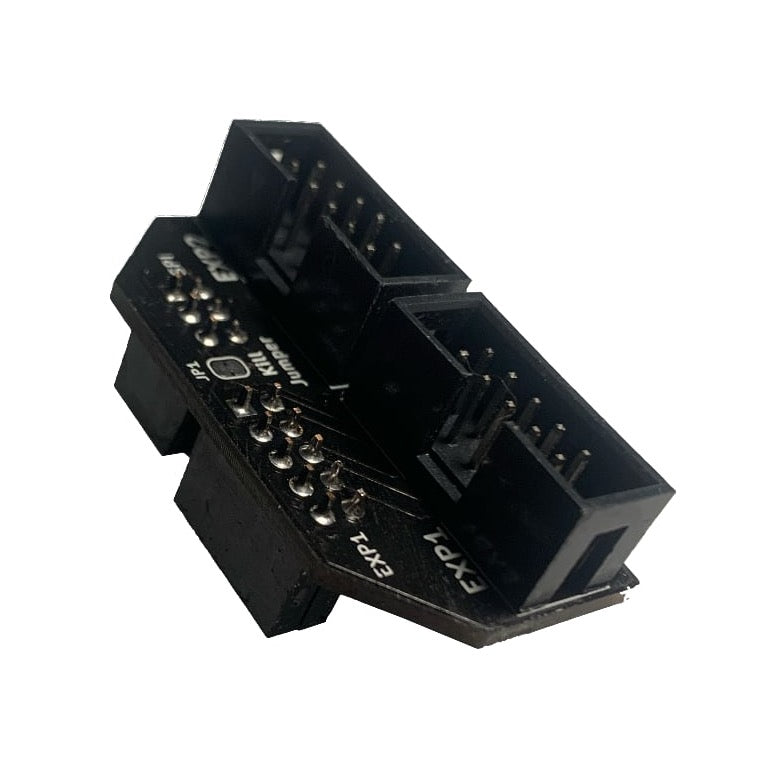

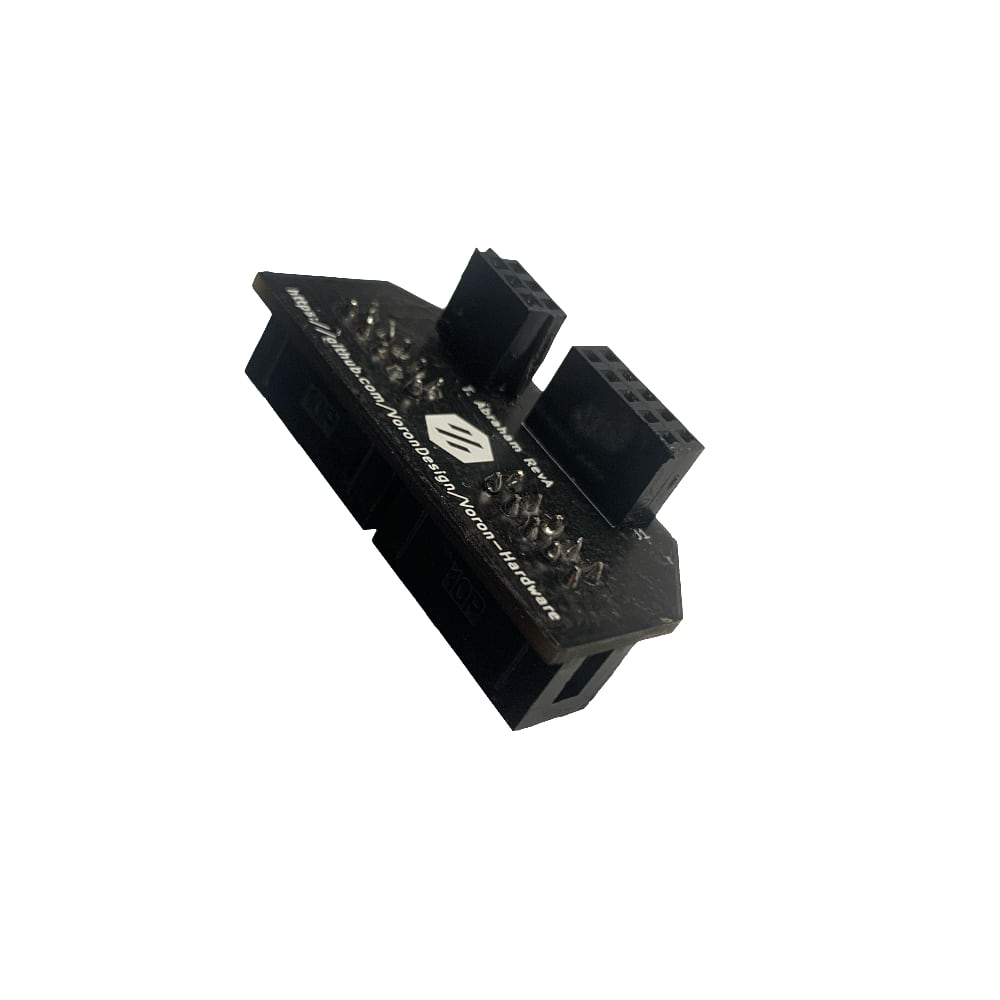

Passive screen adaptor for SKR Mini E3 V1.2/V2.0 boards. This Timmit99/Voron Hardware PCB adapts a dual 2x5 EXP1/EXP2 display connection so 12864-style two-ribbon-cable screens can be used with compatible SKR Mini E3 V1.2 and V2.0 control boards.
Why use this adaptor
- Designed for the SKR Mini E3 V1.2/V2.0 screen-header layout documented in the Voron Hardware repository.
- Simple passive PCB: no firmware chip, no active electronics, just the connector breakout needed for the display cable mapping.
- Useful when pairing an SKR Mini E3 V1.2/V2.0 with a dual-ribbon 12864 display such as the BTT MINI12864 V2.0.
Specifications
- Project: Voron Hardware SKR-Mini_Screen_Adaptor
- Version: V1.2/2.0 adaptor, Rev B
- Board type: passive display adaptor PCB
- Display side: dual 2x5 ribbon-cable connector setup
- Controller fitment: BIGTREETECH SKR Mini E3 V1.2/V2.0; documented as tested and working on SKR Mini E3 V2.0
Fitment and setup
Use this when your printer build uses an SKR Mini E3 V1.2 or V2.0 control board and a two-cable 12864-style LCD. The Voron Hardware project includes the required ScreenBreakout.cfg; add it beside your printer.cfg and include it from your Klipper config.
Not for
- Not the SKR Mini E3 V3.0 adaptor; the V3 board uses a different version.
- Not a display by itself. Pair it with a compatible 12864 LCD.
- Not an active signal converter or firmware fix; confirm your display and firmware pinout before powering the controller.
Primary documentation: Voron Hardware SKR Mini Screen Adaptor V1.2/2.0.
