Molex Micro-Fit Dual Row 4 Circuit Kit
$2.99
1
More payment options at checkout
A small Micro-Fit 3.0 connector kit for 4-circuit wire-to-wire or wire-to-board harness work. This Molex kit pairs dual-row 4-circuit housings with matching male and female crimp terminals, useful for compact 3D-printer electronics, toolhead wiring, and serviceable harnesses.

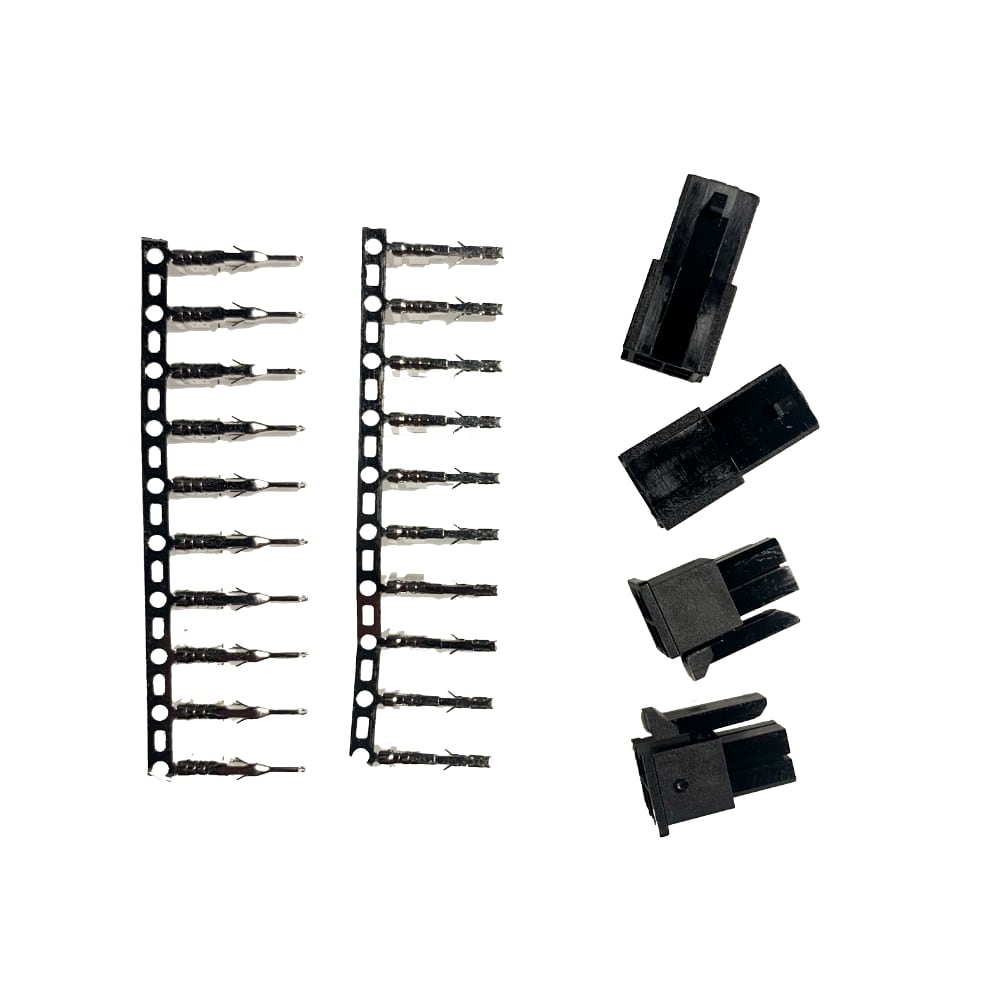

What is included

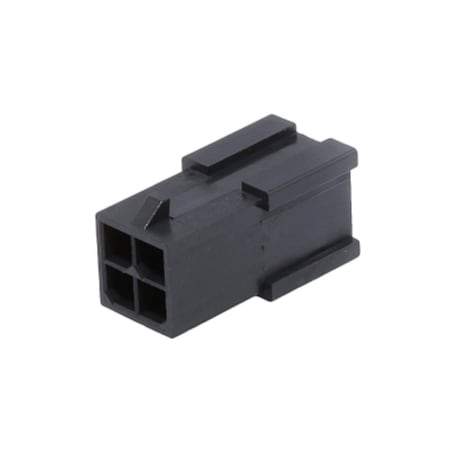

- 2 × Molex 43020-0401 Micro-Fit 3.0 plug housings, dual row, 4 circuits. Also available as the individual 43020-0401 plug housing.

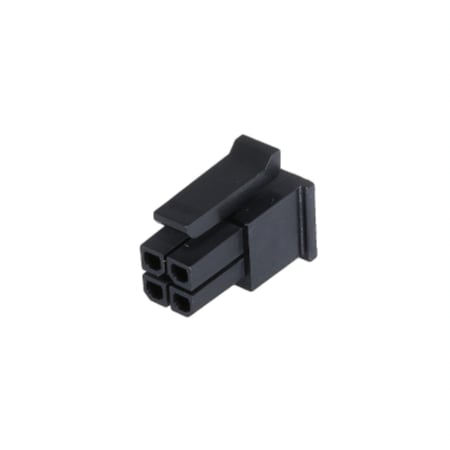

- 2 × Molex 43025-0400 Micro-Fit 3.0 receptacle housings, dual row, 4 circuits.
- 10 × male Micro-Fit crimp terminals and 10 × female Micro-Fit crimp terminals.
Why Micro-Fit 3.0
- 3.00 mm pitch keeps harness connectors compact without dropping to tiny JST-class contacts.
- Molex Micro-Fit is designed for power and signal interconnects; the family supports up to 10.5 A when the correct terminals, wire gauge, and derating are used.
- Positive-latching housings make it a better choice than loose Dupont-style connectors for printer wiring that gets moved or serviced.
Specifications
- Brand: Molex
- Series: Micro-Fit 3.0
- Connector format: dual-row, 4-circuit / 4-position, 2×2 layout
- Pitch: 3.00 mm
- Housing color: black
- Typical use: compact harness disconnects for 3D-printer electronics, toolhead boards, motors, fans, and accessories where the mating connector family matches Micro-Fit 3.0.
Fitment notes
- Use with the correct Micro-Fit 3.0 crimp tooling and compatible wire gauge for your terminal choice.
- This is a 4-circuit Micro-Fit 3.0 kit; it is not Mini-Fit Jr., JST-XH, JST-PH, or Dupont.
- For other Micro-Fit sizes, see the 2-position Micro-Fit housing or the 14-pin Micro-Fit housing.
