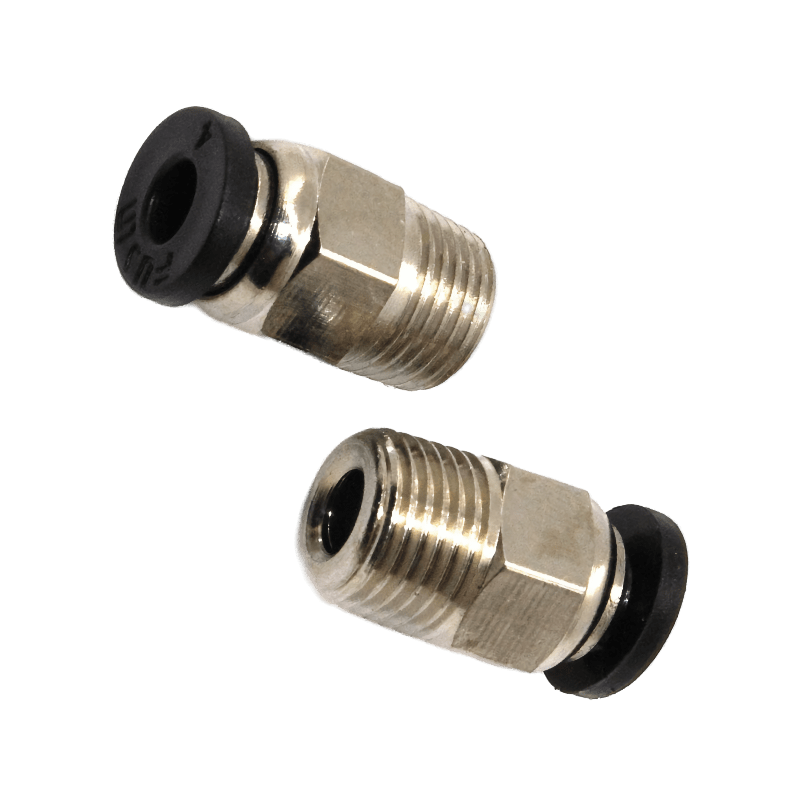

PC4-01 / PC4-M10 Press Fit Pneumatic Fitting

Push-fit Bowden coupler for 4 mm OD filament tube. This PC4-01 / PC4-M10 style pneumatic fitting grips PTFE or FEP tube with an internal collet so the tube stays seated through extruder and filament-path motion.

Why use this fitting

• Fits the common 4 mm outer-diameter Bowden tube used with 1.75 mm filament paths.
• Threaded metal body installs into compatible hotends, extruders, filament sensors, buffers, and printed mounts that call for a PC4-01 or PC4-M10 style coupler.
• Push the tube in to lock it; press the collar down to release the tube for service.

Specifications

• Part family: PC4-01 / PC4-M10 straight pneumatic push fitting
• Tube fit: 4 mm OD PTFE/FEP Bowden tube
• Filament context: typically used on 1.75 mm printer filament paths
• Available collar colors: black or blue

Use it with

• Transparent FEP Tube for filament-feed runs.
• Collet Clip when you want extra retention at a push-fit connector.
• Extruder Collet ECAS04 if your printed part calls for an embedded collet instead of a threaded coupler.

Gotchas

• Check the printed part or hotend thread before ordering. PC4-01 and PC4-M10 are commonly treated as interchangeable in printer BOMs, but strict pneumatic specs distinguish 1/8 NPT-style PC4-01 from metric M10 threads.
• This is the coupler only; tube, clips, and printed mounts are sold separately.
