PLEASE READ ENTIRE LISTING There are 4 versions of the OptoTap PCB: v1 5v and v2 5v-24v, both released in 2022 and v1.3 5v and v2.4 5v-24v, both released in March, 2023....

Style: Rail With OptoTap V1 (5v) and Hardware Kit

Rail With OptoTap V1 (5v) and Hardware Kit
Rail With OptoTap V1.3 (5v) and Hardware Kit
Rail With OptoTap V2 (5-24v) and Hardware Kit
Rail With OptoTap V2.4 (5-24v) and Hardware Kit
Rail With Omron D2HW-0C203MR Switch and Hardware Kit
Rail With unTAP Hardware Kit
Rail Only
V1 5v PCB Only
V1.3 5v PCB Only
V2 5-24v PCB Only
V2.4 5-24V PCB Only
Hardware Kit Only
$44.99 $39.99 SAVE 11%
Add to Wishlist
Style: Rail With OptoTap V1 (5v) and Hardware Kit, Rail With OptoTap V1.3 (5v) and Hardware Kit, Rail With OptoTap V2 (5-24v) and Hardware Kit, Rail With OptoTap V2.4 (5-24v) and Hardware Kit, Rail With Omron D2HW-0C203MR Switch and Hardware Kit, Rail With unTAP Hardware Kit, Rail Only, V1 5v PCB Only, V1.3 5v PCB Only, V2 5-24v PCB Only, V2.4 5-24V PCB Only, Hardware Kit Only
Vendor: dfh.fm
SKU: 9774985848
Barcode: 6683812225348
Availability : In Stock Pre order Out of stock
Description

PLEASE READ ENTIRE LISTING

There are 4 versions of the OptoTap PCB:

v1 5v and v2 5v-24v, both released in 2022 and v1.3 5v and v2.4 5v-24v, both released in March, 2023.

v1 5v is just as good as V1.3 5v.

v2 5-24v may set your house on fire, while v2.4 5-24v has, so far, started zero house fires.

Information on the kit may be found on the Voron GitHub Tap repo. Here's the intro from the manual:

INTRODUCTION: WELCOME TO TAP

WHAT IS TAP?

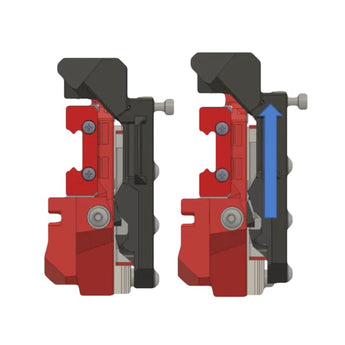

Tap is a nozzle-based z-probe for the Voron V2 and Trident printer designs. The entire toolhead moves to trigger an optical switch. Tap offers many advantages over other z-probes; Here are a few examples:

EXTREME PRECISION

A well constructed Tap, when in service on a well-constructed printer, will be able to measure your Z position reliably with a precision of 0.4 μm (0.0004 mm). This precision will help you better use and maintain your printer.

ANY BUILD SURFACE, CHANGE AT WILL

Tap can measure any securely mounted build surface. Print on Glass, Garolite, Alumina, Moon dust...it no longer matters. Textured plates are ideal for Tap, but adhesive PEI sheets may also be used. Tap is unaffected by beds with magnetic fluctuations (note: magnets may affect the build surface Tap is sensing, such as pulling the plate tighter over the magnet). Once Tap is setup, you should not need to recalibrate after changing nozzles or build plates.

VORON DURABILITY, HIGH TEMPERATURE OPERATIONS

Tap uses light to detect movement and will never wear out. The sensor in Tap is rated to operate at 70C to 100C and will not degrade over time the way a contact switch or inductive probe can. Even if you brought your chamber temperature to 100C, it will accurately and reliably record your printer melting (assuming you printed in ABS). We tested dozens of printers and thousands of print hours. Hundreds of PIF quality kits were printed using Tap. Some test printers had over 1,000,000 probe cycles to test durability.

NO COMPLICATED MACROS

For consistent probing temperatures, Tap uses a single ‘activate_gcode’ macro in the [probe] config. Tap is always ready to probe and requires no docking or undocking moves.

Z ENDSTOP ELIMINATION

There is no need for a separate Z endstop. Once the offset is configured, it will hold without appreciable drift. It is normal to need slightly different offsets when switching between filament types.

CRASH PROTECTION

With Tap installed, the nozzle and bed are protected from minor crashes (such as accidentally setting your Z to 1 mm below the build surface

Hardware/Motion Kit indludes:

item recommended included
50 mm MGN9 rail (DFH 440c) 1 1
MGN 9H Carriage (DFH Z1) 1 1
M3 Washers 6 8
M3x50 SHCS 2 3
M3 x 20 SHCS 2 3
M3 x 16 SHCS 3 4
M3 x 12 SHCS 1 2
M3 x 8 SHCS 3 4
M3 x 6 SHCS 1 2
M3 x 6 FHCS (Magnetic) 2 3
M3 x 12 BHCS 2 3
M3 x 6 BHCS 12 15
6 mm x 3mm magnet (Black Nickel Coated N52) 4 5
Heat-set inserts (Black Nickel Coated) 12 15
M3 Hex nut 3 4

Linear rails are 440 SS, with a Z1 preload. Magnets are black nickel coated N52.

Additional Information
Style

Rail With OptoTap V1 (5v) and Hardware Kit, Rail With OptoTap V1.3 (5v) and Hardware Kit, Rail With OptoTap V2 (5-24v) and Hardware Kit, Rail With OptoTap V2.4 (5-24v) and Hardware Kit, Rail With Omron D2HW-0C203MR Switch and Hardware Kit, Rail With unTAP Hardware Kit, Rail Only, V1 5v PCB Only, V1.3 5v PCB Only, V2 5-24v PCB Only, V2.4 5-24V PCB Only, Hardware Kit Only
