OMC Stepperonline 14HS11-1004S

$14.00 USD
Shipping calculated at checkout.

Pickup available at 7723 Paraiso HVN

Usually ready in 24 hours

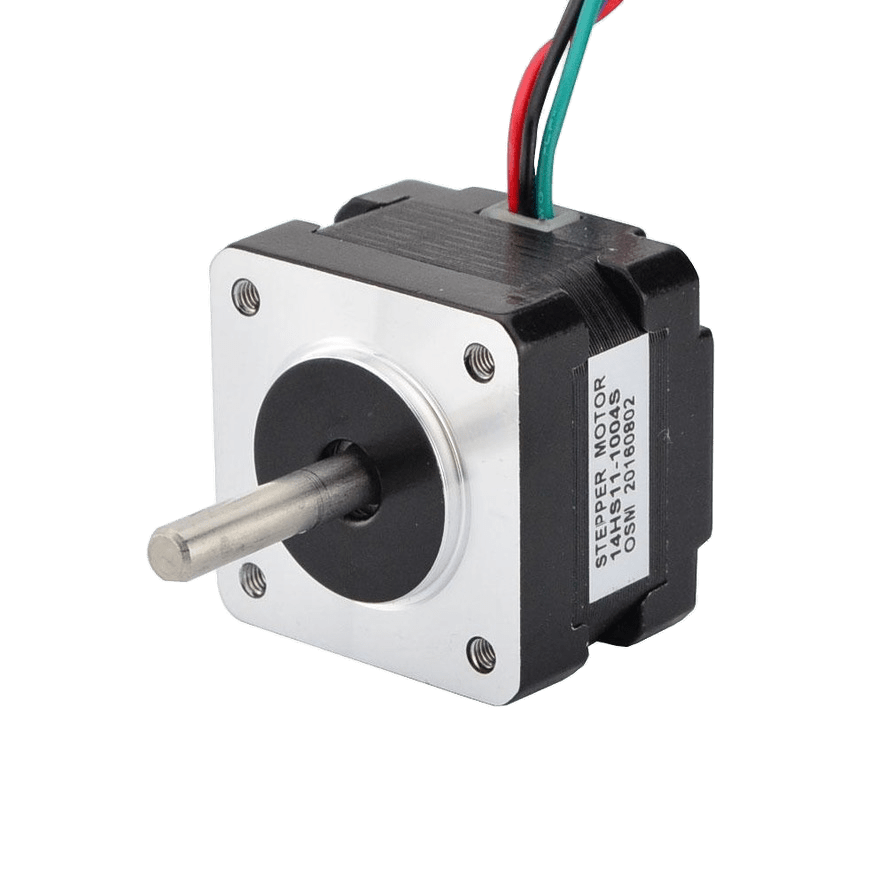

This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x28mm. It has 4 wires, each phase draws 1 A at 3.5V, with holding torque 12.5Ncm (17.7oz.in).

Electrical Specification

  • Manufacturer Part Number: 14HS11-1004S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 12.5Ncm(17.7oz.in)
  • Rated Current/phase: 1.0A
  • Voltage:3.5V
  • Phase Resistance: 3.5ohms
  • Inductance : 3.5mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 28mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 140g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
