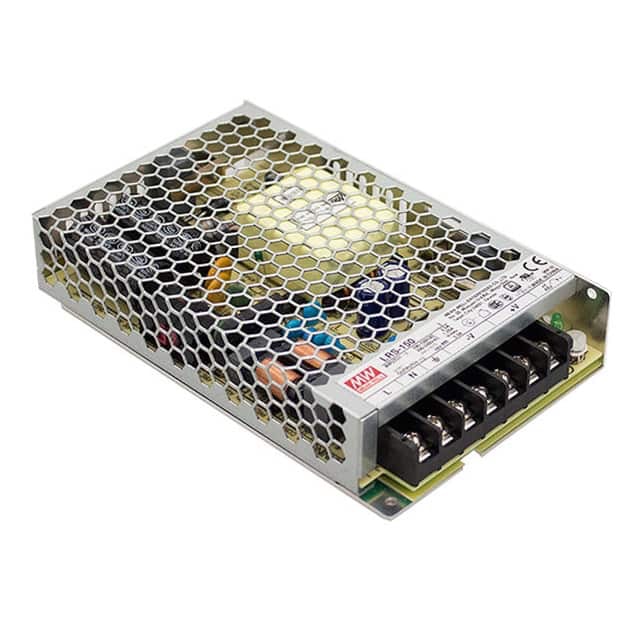

Mean Well LRS-150-24
Specification Value Output Voltage 24 VDC Output Current 6.50 A Input Voltage 85 VAC to 132 VAC, 170 VAC to 264 VAC Input Frequency 47 Hz to 63 Hz Output Connector...
Description
| Specification | Value |
| Output Voltage | 24 VDC |
| Output Current | 6.50 A |
| Input Voltage | 85 VAC to 132 VAC, 170 VAC to 264 VAC |
| Input Frequency | 47 Hz to 63 Hz |
| Output Connector Type | Screw Terminal Block |
| Length | 6.26 in. |
| Width | 3.82 in. |
| Height | 1.18 in. |
| PFC Function | No |
| Agency Approvals | UL, CUL, TUV, CB, CE, EN, EAC, CCC |
| Maximum Input Current | 2.8 A |
| Number of Outputs | 1 |
| Power Rating | 156 W |
| Efficiency | 89% |
| Family | LRS-150 |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | 70°C |
| Minimum Isolation Voltage | 3750V |
| Color | Silver |
| Type | Switch Selectable |
| Style | Enclosed |
| Output Voltage (Channel 1) | 24 VDC |
| Output Current (Channel 1) | 6.5 A |
Mean Well LRS-150-24
$26.00
