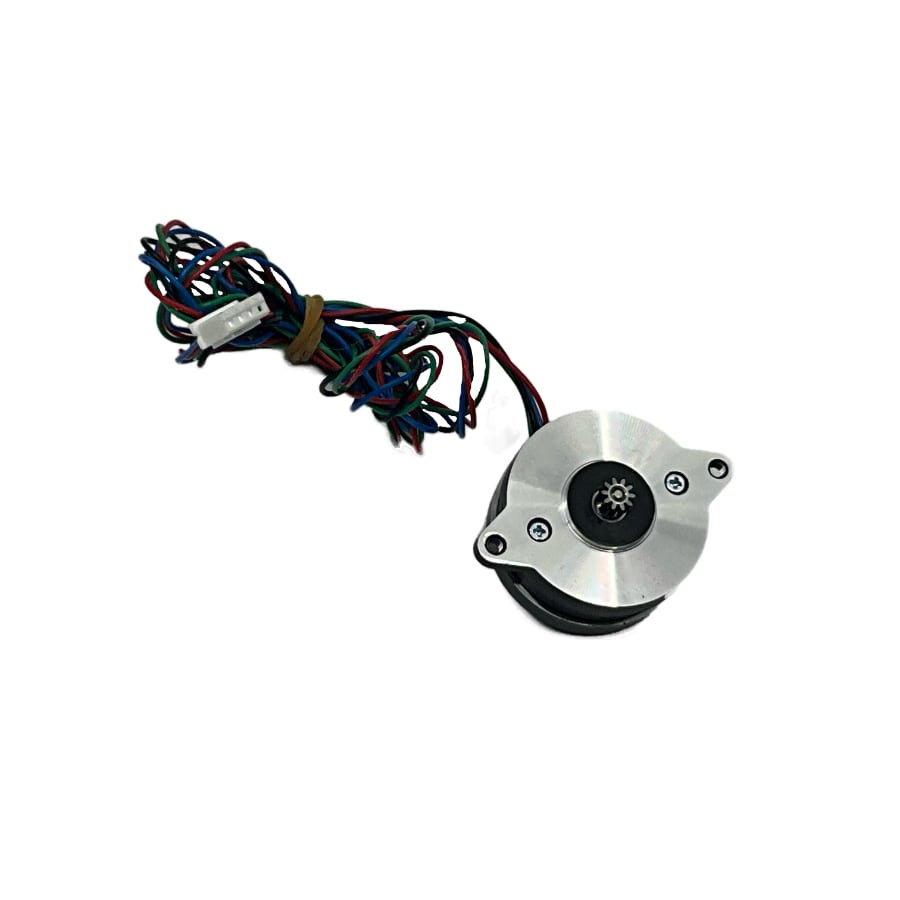

LDO-36STH17-0354AHG(DFH)

LDO NEMA14 (36mm) pancake stepper from the 36STH17 family — the 0354AHG, LDO's 180°C high-temperature variant (formerly sold as the 36STH17-1004AHG). The slim pancake body keeps mass low on direct-drive extruders and toolheads, and the 180°C insulation tolerates the heat of a hard-driven toolhead or an enclosed chamber better than a standard motor. Common on Sherpa Mini, Galileo, Orbiter, V0 Afterburner and Mini Stealthburner extruders on Voron printers.

• NEMA14 frame, 36mm body (pancake / low-profile)
• 1.8° step angle (200 full steps/rev)
• 1A rated phase current
• 100 mNm holding torque
• 180°C high-temperature insulation class
