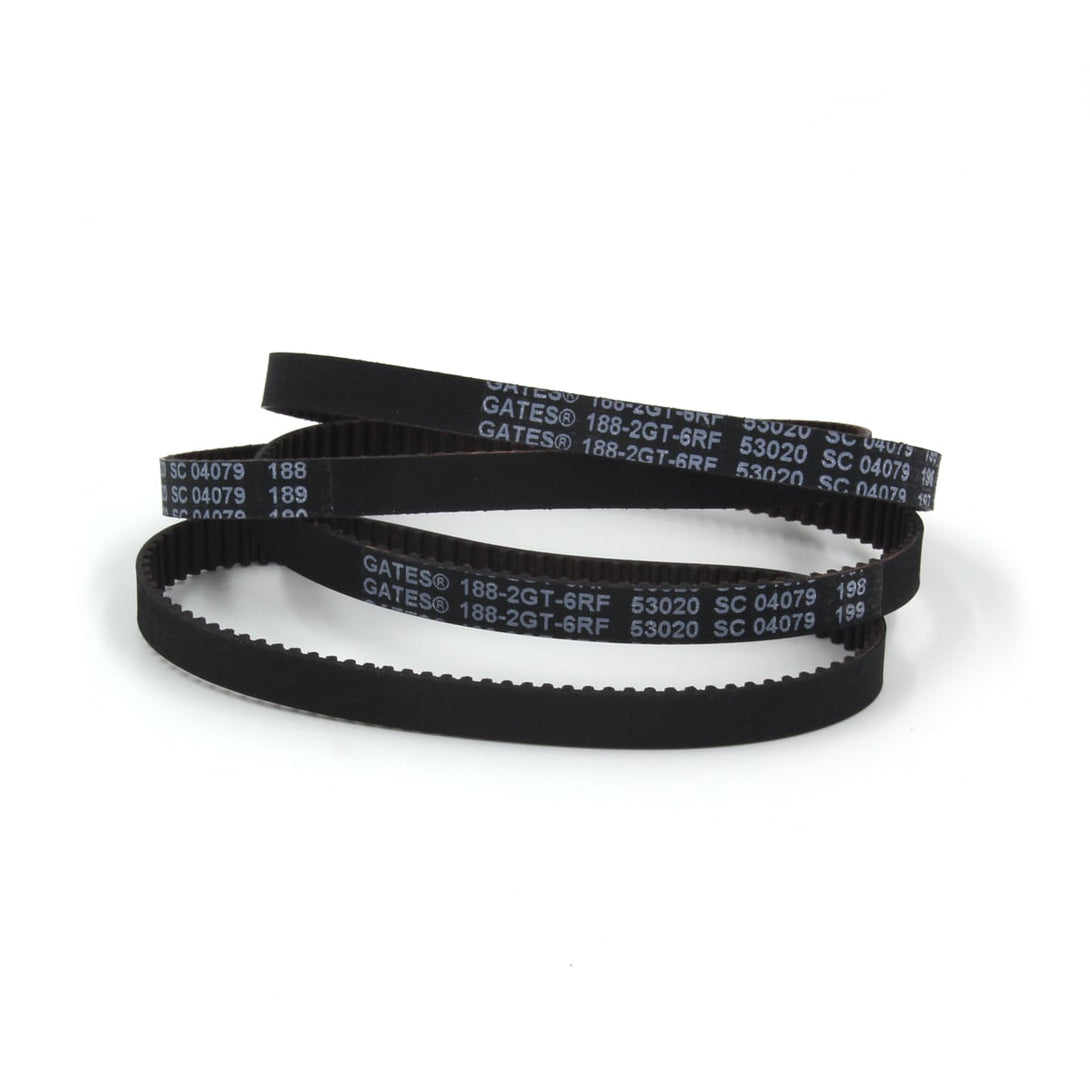

Gates 188-2GT-6 RF Closed Loop Belt

Genuine Gates 188-2GT-6 RF closed-loop timing belt for compact 2GT/GT2 motion assemblies: 188 mm loop length, 6 mm width, 2 mm pitch, round-tooth profile, black neoprene rubber construction with fiberglass tensile reinforcement.

Why use this belt

• Closed loop: molded endless belt for fixed-center short runs where you are not cutting belt to length.
• Gates PowerGrip GT2 family: low-stretch fiberglass cord and rubber body for repeatable positioning in small motion systems.
• Voron BOM-spec size: the 188 mm × 6 mm Gates GT2 loop is a common Voron motion belt size, also sold by Voron-focused suppliers as 188-2GT-6RF.

Specifications

• Manufacturer / brand: Gates
• MPN / marking: 188-2GT-6 RF
• Belt type: closed-loop synchronous timing belt
• Pitch: 2GT / GT2, 2 mm tooth pitch
• Loop length: 188 mm
• Tooth count: 94 teeth
• Width: 6 mm
• Construction: neoprene rubber with fiberglass tensile reinforcement

Fitment and pairing

• Use with 6 mm-wide 2GT/GT2 pulleys and idlers, including our 20T 5 mm bore / 6 mm width Runice pulley, 16T 5 mm bore / 6 mm width Runice pulley, and 20T 5 mm bore / 6 mm width Runice toothed idler.
• Match the loop length to your BOM or printed part spacing before ordering; a closed loop is not adjustable by trimming.

What it is not

• Not open-ended belt stock and not sold by the meter.
• Not a 9 mm belt; use this only where the design calls for 6 mm belt width.
