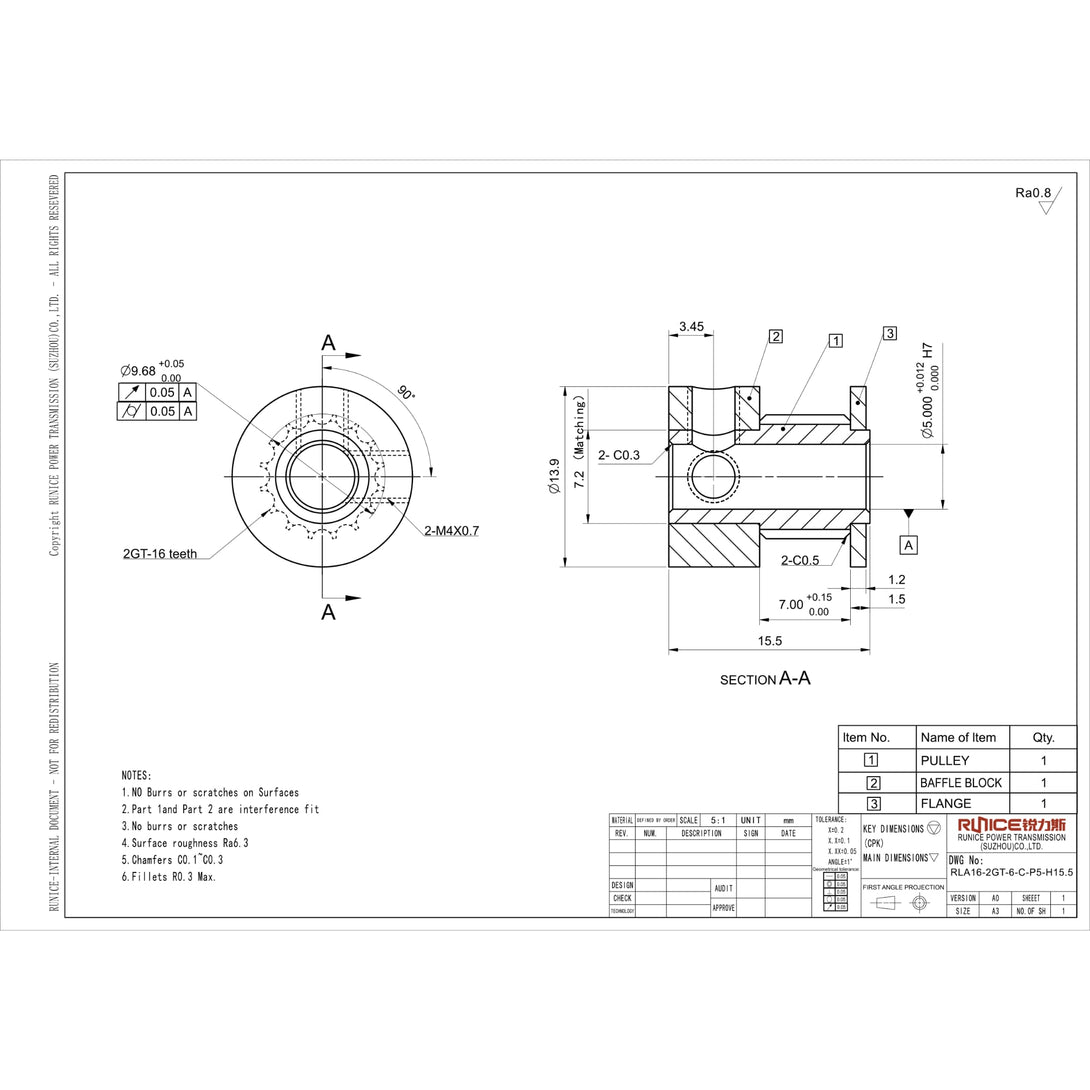

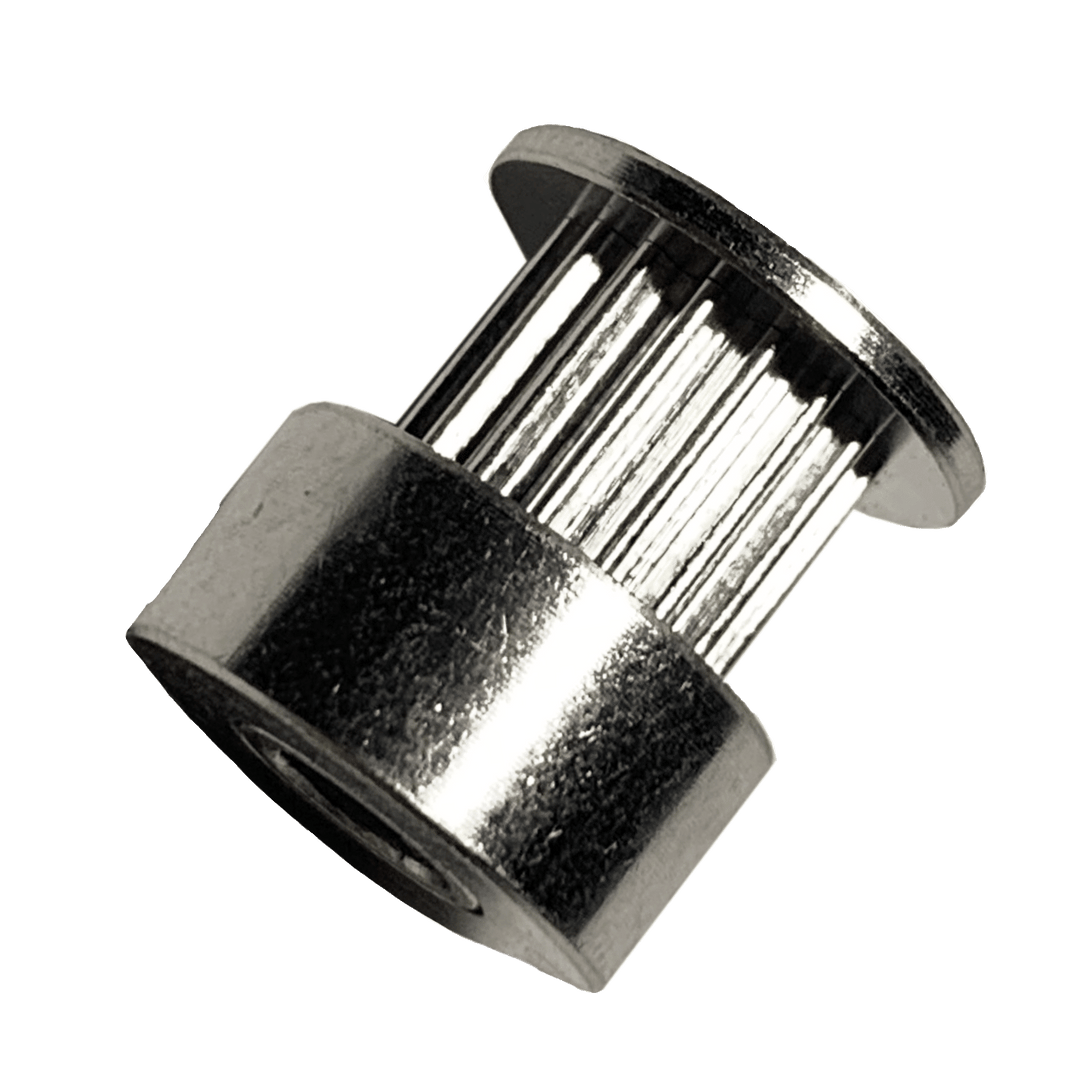

Silver Runice 16T 2GT timing pulley for 5 mm motor shafts and 6 mm GT2 belts. This is Runice drawing number RLA16-2GT-6-C-P5-H15.5: a double-flanged, 16-tooth drive pulley for compact 3D-printer motion systems.
Why this pulley
- 16T 2GT tooth profile for fine belt resolution in GT2/2GT motion paths.
- 5.000 mm H7 bore fits common 5 mm stepper shafts.
- 6 mm belt width matches standard 6 mm GT2 belt runs.
- Double flanges plus two M4 set screws help keep the pulley located on the shaft.
Specifications
- Manufacturer / MPN: Runice RLA16-2GT-6-C-P5-H15.5
- Tooth profile: 2GT / GT2
- Tooth count: 16 teeth
- Bore: 5 mm
- Belt width: 6 mm
- Overall length: 15.5 mm
- Set screws: 2 × M4×0.7, 90° apart
- Finish: silver
Use and fitment
Use this where your BOM calls for a 16T 2GT pulley with 5 mm bore and 6 mm belt width. It sits in the same Runice motion-parts family as the black 16T Runice pulley, 20T silver Runice pulley, and 20T Runice toothed idler.
Check before ordering
- This is a drive pulley, not a free-spinning idler.
- This is 16T, not the more common 20T pulley.
- This is for 6 mm belts, not 9 mm belt paths.
- Confirm your shaft is 5 mm and your belt path has room for the 15.5 mm pulley length.
