Bat85 Diode
$0.69
1
More payment options at checkout

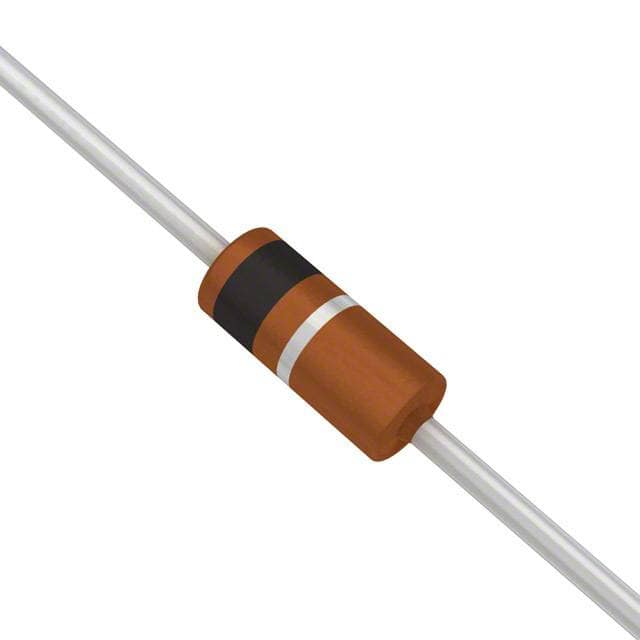

BAT85 small-signal Schottky diode for low-forward-voltage switching and signal protection. This is a through-hole DO-35 axial diode rated for 30V reverse voltage and 200mA forward current.
Why use this instead of a generic signal diode?
- Lower forward voltage than a standard silicon switching diode, useful where you need a clamp or signal path to conduct earlier.
- Fast small-signal behavior for probe, endstop, detection, and low-current electronics circuits.
- Axial DO-35 glass package is easy to solder inline or into through-hole boards.
Specifications
- Part family: BAT85 Schottky barrier diode
- Package: DO-35 / DO-204AH axial glass
- Reverse voltage: 30V
- Forward continuous current: 200mA
- Typical forward voltage: 0.24V at 0.1mA, 0.32V at 1mA, 0.40V at 10mA
- Quantity: single diode
Intended use
Use it for low-current electronics work, probe/endstop signal protection, or repairs where a BAT85-family Schottky diode is specified. In Voron-style printer builds, it is commonly paired with inductive probe wiring such as the Omron TL-Q5MC2-Z NPN NC probe; always follow your controller board wiring documentation.
What it is not
- Not a high-current rectifier or heater-bed power diode.
- Not a Zener diode, TVS diode, or general replacement for every protection circuit.
- Not required on every CAN toolhead or controller board; check the board's probe input design first.
