Salad Fork Kit

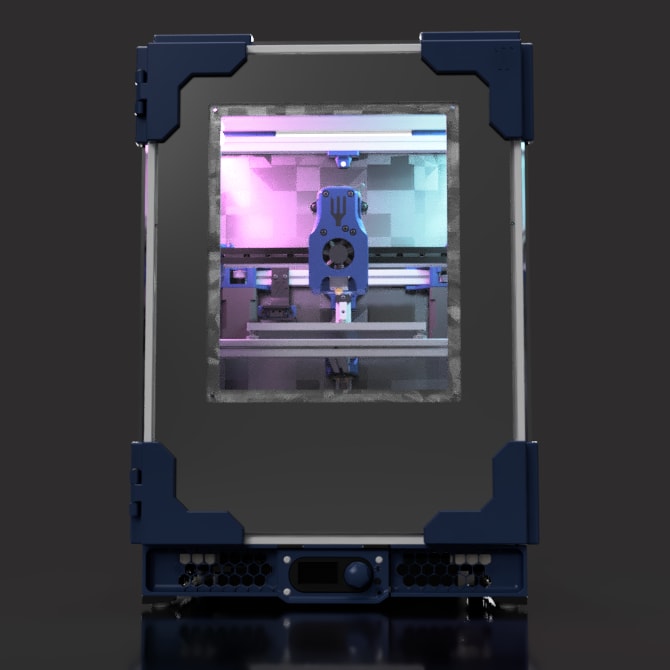

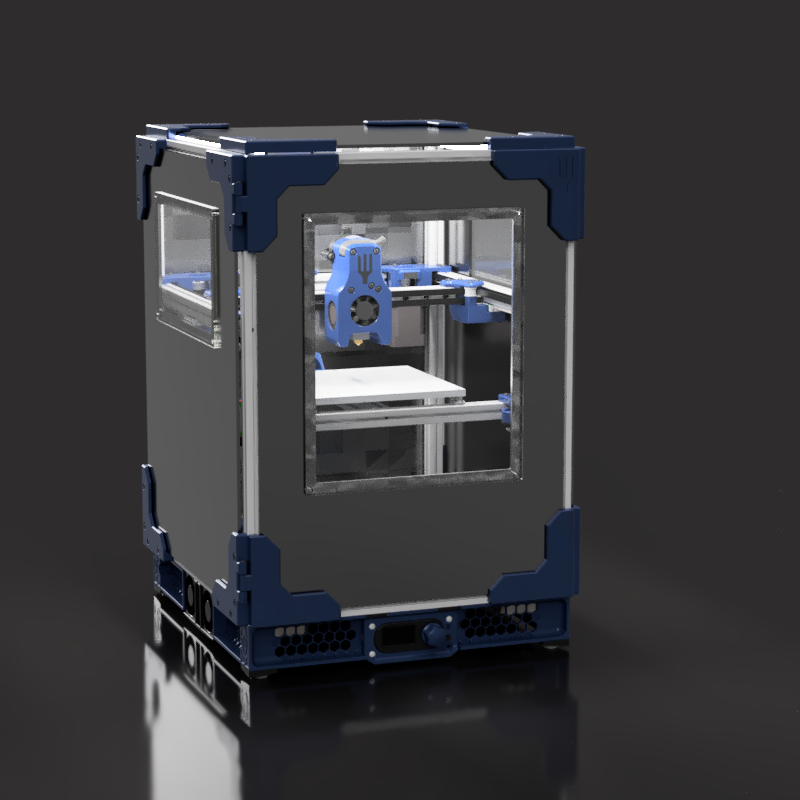

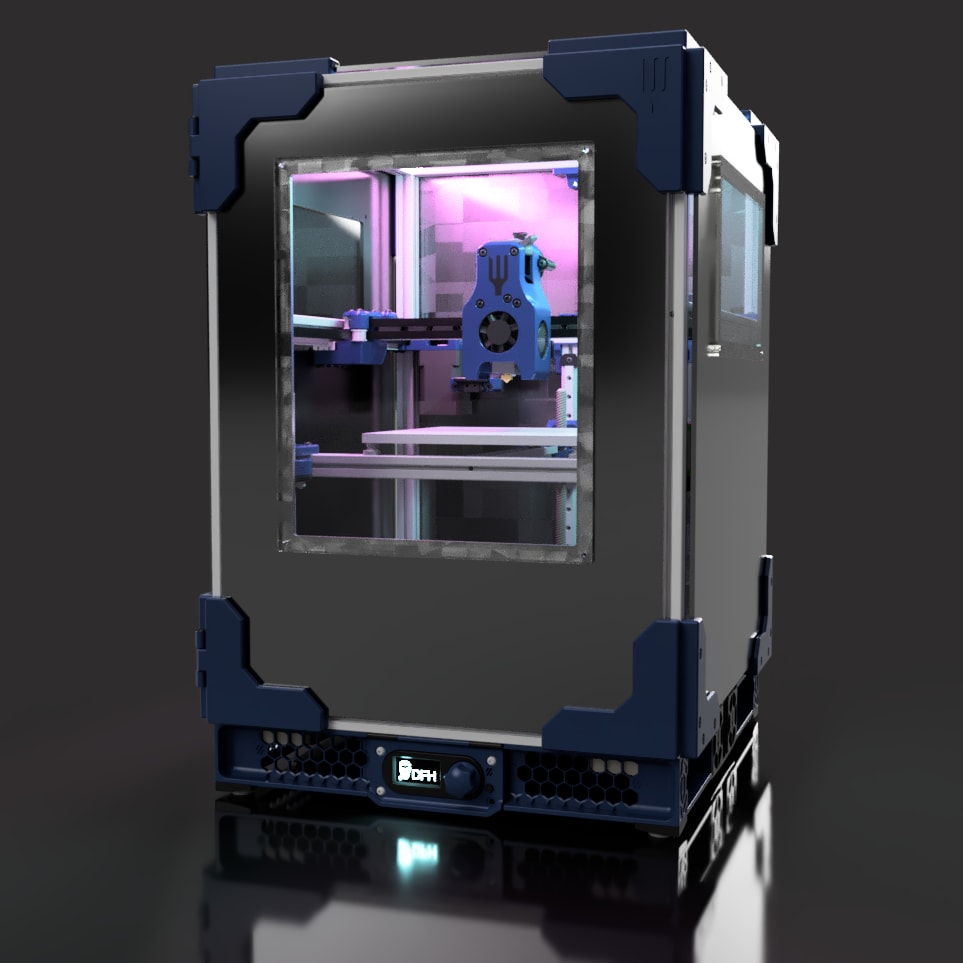

The Salad Fork is a miniature 3D printer, based on the Voron Trident. It has a build area of 160mm, making it perfect for small projects and prototyping. Easy to use...
Description
The Salad Fork is a miniature 3D printer, based on the Voron Trident. It has a build area of 160mm, making it perfect for small projects and prototyping. Easy to use and affordable, the Salad Fork is the perfect choice for any DIY enthusiast.
Power supply, rails, heater, SSR (if required), panels and hotend are all sold separately, as there are multiple options available.
| Part Type | Manufacturer | Component | Included |
| Hardware/Fasteners | DFH | M2x6 BHCS | 92 |
| Hardware/Fasteners | DFH | M2x10 Self-Tapping | 18 |
| Hardware/Fasteners | DFH | M2x12 SHCS | 12 |
| Hardware/Fasteners | DFH | M3 0.5mm shims | 39 |
| Hardware/Fasteners | DFH | M3x6 BHCS | 86 |
| Hardware/Fasteners | DFH | M3x6 SHCS | 15 |
| Hardware/Fasteners | DFH | M3x8 BHCS | 74 |
| Hardware/Fasteners | DFH | M3x8 SHCS | 12 |
| Hardware/Fasteners | DFH | M3x10 BHCS | 117 |
| Hardware/Fasteners | DFH | M3x10 SHCS | 18 |
| Hardware/Fasteners | DFH | M3x12 BHCS | 78 |
| Hardware/Fasteners | DFH | M3x12 SHCS | 27 |
| Hardware/Fasteners | DFH | M3x16 SHCS | 5 |
| Hardware/Fasteners | DFH | M3x20 SHCS | 12 |
| Hardware/Fasteners | DFH | M3x25 BHCS | 27 |
| Hardware/Fasteners | DFH | M3x25 SHCS | 12 |
| Hardware/Fasteners | DFH | M3x30 BHCS | 9 |
| Hardware/Fasteners | DFH | M3x35 BHCS | 8 |
| Hardware/Fasteners | DFH | M3x35 SHCS | 6 |
| Hardware/Fasteners | DFH | M5x10 BHCS | 6 |
| Hardware/Fasteners | DFH | M5x16 BHCS | 5 |
| Hardware/Fasteners | DFH | M5 Hex Nut | 5 |
| Hardware/Fasteners | DFH | M3 Lock Nut | 9 |
| Hardware/Fasteners | DFH | M3 Hex Nut | 234 |
| Hardware/Fasteners | DFH | M2 Hex Nut | 56 |
| Hardware/Fasteners | DFH | M3 (5x4) Heatset Insert | 51 |
| Hardware/Fasteners | DFH | M4 Knurled Nut | 5 |
| Hardware/Fasteners | DFH | 6x3 Neodymium Magnets | 30 |
| Motion | DFH | F623-RS Flanged Bearing | 24 |
| Motion | DFH | GE5C Spherical Bearing | 3 |
| Motion | DFH | TR8x8 Leadscrew Nut | 3 |
| Motion | Gates | GT-2 6mm Belt | 4 |
| Motion | Runice | GT-2 20T 6mm Pulleys (5mm Bore) | 2 |
| Motion | DFH | DFH Nema14 Stepper Motor DFH-14MCRN-1848 | 2 |
| Motion | DFH | DFH Nema14 Pancake Stepper Motor DFH-14MCRN-1815 | 1 |
| Motion | DFH | DFH Nema17 Integrated Leadscrew Stepper Motor DFH-42USC-200N81404B | 3 |

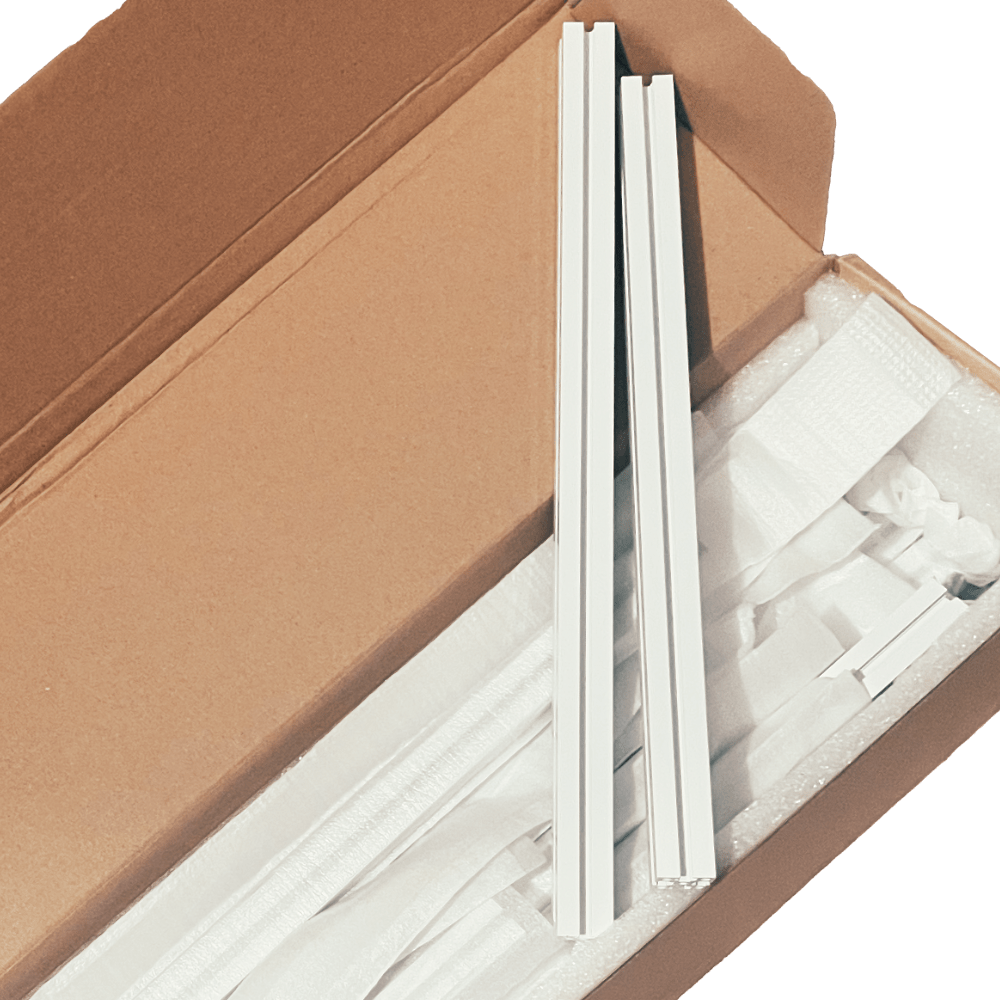

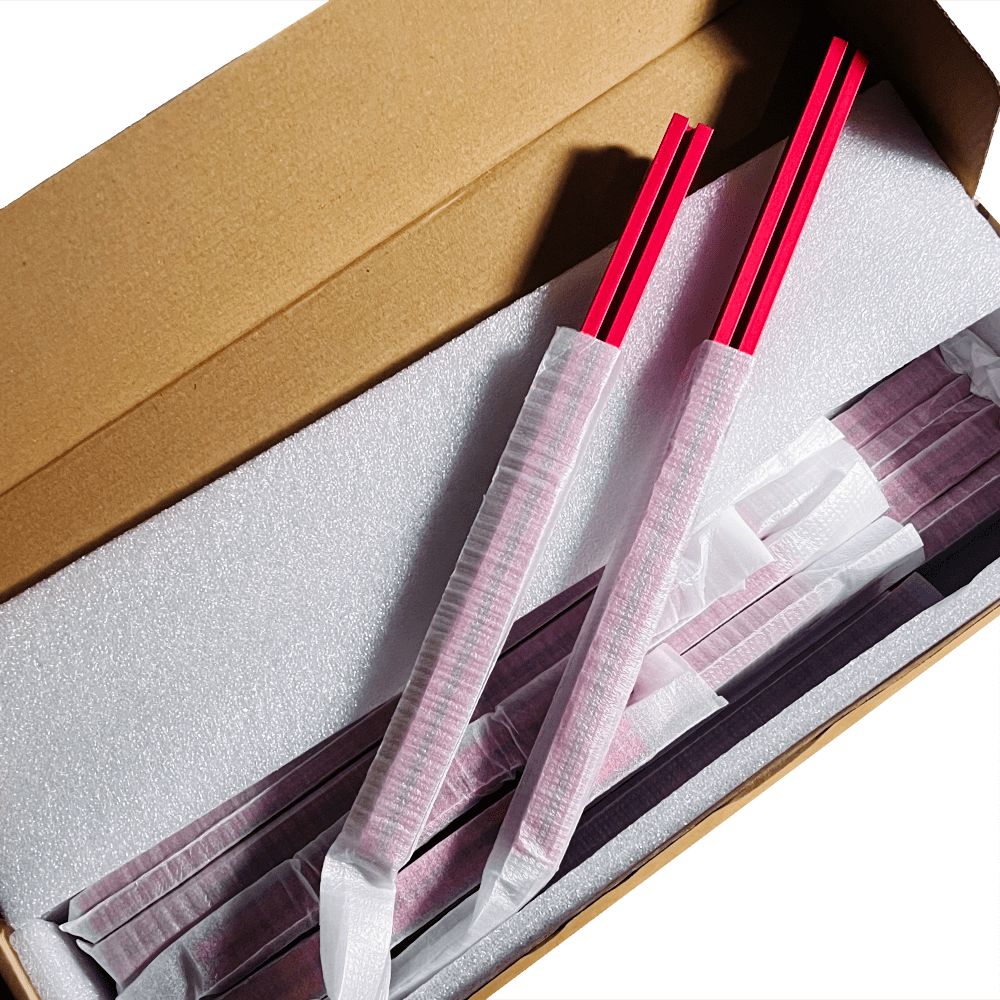

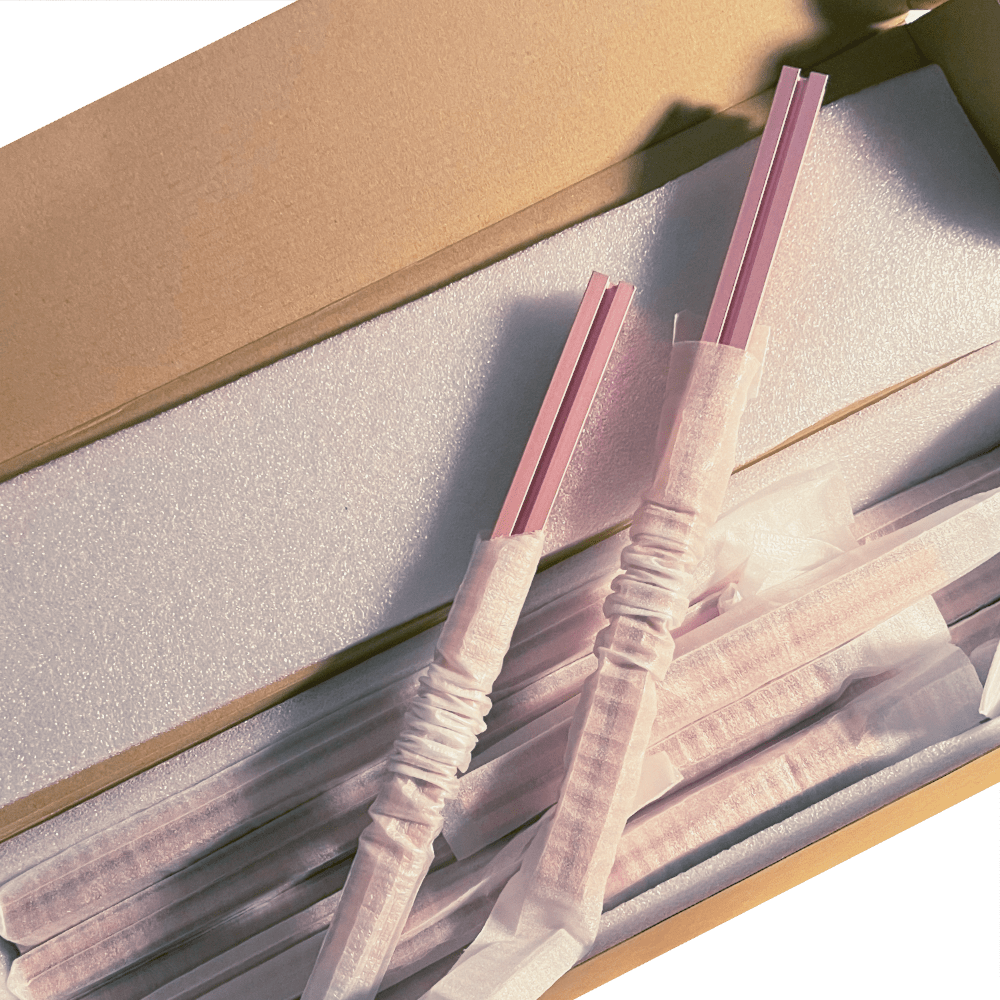

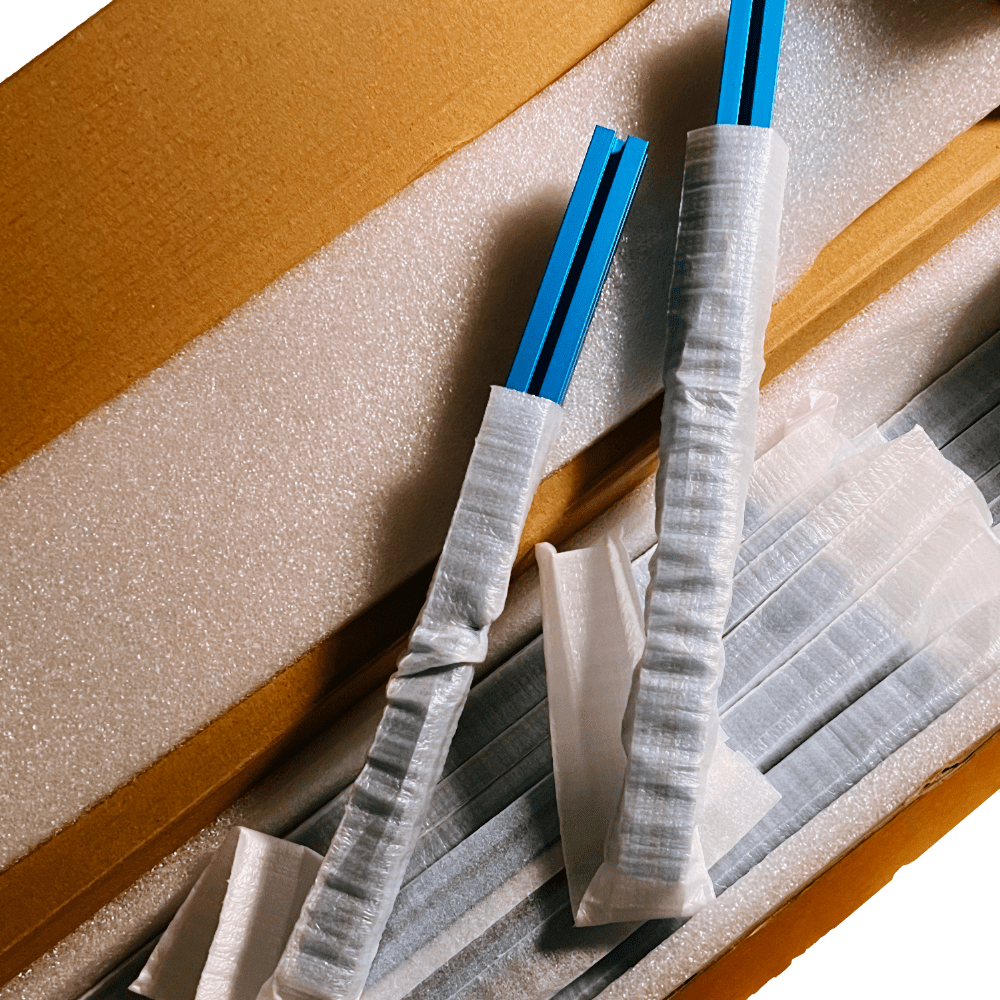

| Frame (160mm³) | DFH | HFS3-1515-270 (T-SLOT EQUIVALENT) | 5 |
| Frame (160mm³) | DFH | HFS3-1515-175 (T-SLOT EQUIVALENT) | 1 |
| Frame (160mm³) | DFH | HFS3-1515-300 (T-SLOT EQUIVALENT) | 6 |
| Frame (160mm³) | DFH | HFS3-1515-400 (T-SLOT EQUIVALENT) | 4 |
| Frame (160mm³) | DFH | HFS3-1515-230 (T-SLOT EQUIVALENT) | 1 |
| Frame (160mm³) | DFH | HFS3-1515-240 (T-SLOT EQUIVALENT) | 1 |
| Frame (160mm³) | DFH | HFS3-1515-170 (T-SLOT EQUIVALENT) | 1 |
| Electronics | BigTreeTech | Manta | 1 |
| Electronics | BigTreeTech | TMC 2209 | 5 |
| Electronics | BigTreeTech | CB1 Pi Replacement | 1 |
| Electronics | BigTreeTech | EBB CAN Toolhead Board | 1 |
| Electronics | BigTreeTech | U2C CAN Interface | 1 |
| Electronics | Igus | Chainflex® CF113-007-D | 3 |
| Electronics | Fyestc | V0 display | 1 |
| Electronics | Omron | D2F Micro Switch | 4 |
| Electronics | DFH | 24AWG Wire (FEP) | 10 |
| Electronics | DFH | 18AWG Wire (FEP) (Green, White, Black) | 1 |
| Electronics | DFH | 18AWG Wire (FEP) (Black, Red) | 1 |
| Electronics | DFH | IEC 320-C14 AC Inlet | 1 |
| Electronics | DFH | 8A 250V 5x20mm Fuse | 1 |
| Electronics | DFH | 7mm x 7mm Cable Chain | 1m |
| Electronics | Gdstime | 4010 Axial fan (24V) | 2 |
| Electronics | DFH | DIN rail | 2 |
| Toolhead | Runice | BMG Clone Gears (RNC Coated) | 1 |
| Toolhead | Gdstime | 3010 Blower Fan (24V) | 2 |
| Toolhead | Gdstime | 3010 Axial Fan (24V) | 1 |
| Toolhead | DFH | 4mm OD 2.5mm ID PTFE/FEP Tube | 100mm |
| Toolhead | DFH | 4mm OD 3mm ID PTFE Tube | 1m |
| Bed (160mm³) | DFH/LLW | 160mm² UltraFlat Aluminum Bed | 1 |
| Bed (160mm³) | DFH | 170mm² Magnetic Pad | 1 |
| Bed (160mm³) | DFH | 160mm² Flex Plate Smooth/Texture SF Logo | 1 |
| Misc | DFH | Rubber Feet | 4 |
| Misc | DFH | 5x25mm Pin | 1 |
Additional Information
| Color |
White, Purple, Red, Blue, Pink |
|---|
