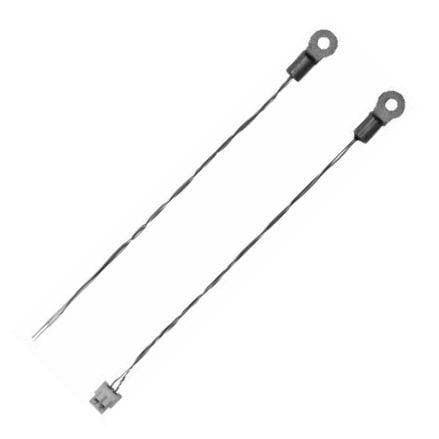

NTC Thermistor With Lug Nut Adapter

QUICK REFERENCE DATA

PARAMETER

VALUE

UNIT

Resistance value at 25 °C

10K to 47K

Ω

Tolerance on R25-value

± 2 to ± 3

%

B25/85-value

3740 to 3984

K

Tolerance on B25/85-value

± 0.5 to ± 1.5

%

Operating temperature range: At zero dissipation

-40 to +125

°C

Response time

≈ 3.5

s

Thermal time constant τ

≈5

s

Dissipation factor δ

10

mW/K

Min. dielectric withstanding voltage between terminals and lug

1000

VAC

Climatic category (LCT / UCT / days)

40 / 125 / 56

-

Weight
without connector with connector

~ 0.5 ~ 0.6

g g
