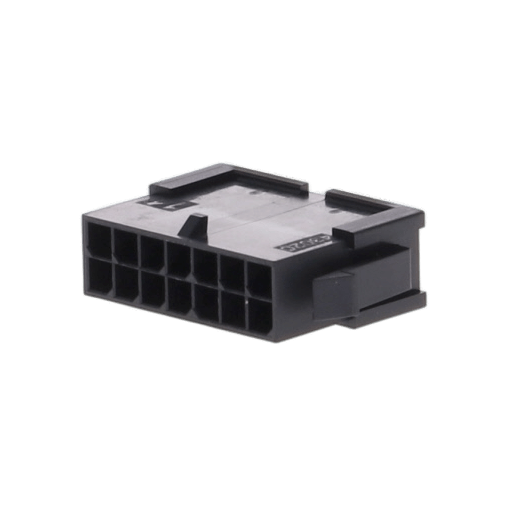

Molex Micro-FIt Dual Row 14 Circuit 7x7 Female

$2.50

Model number: 430201400 Circuits (maximum): 14 Color: Resin Black Flammability: 94V-0 Gender: Plug Glow-Wire Capable No Keying to Mating Part: None Lock to Mating Part Yes Material: Resin Nylon Net Weight:...

Add to Wishlist
Vendor: dfh.fm
SKU: 5850680727
Barcode: 6194853933999
Availability : In Stock Pre order Out of stock
Description
  • Model number: 430201400
  • Circuits (maximum): 14
  • Color: Resin Black
  • Flammability: 94V-0
  • Gender: Plug
  • Glow-Wire Capable No
  • Keying to Mating Part: None
  • Lock to Mating Part Yes
  • Material: Resin Nylon
  • Net Weight: 1.637/g
  • Number of Rows: 2
  • Packaging Type: Bag
  • Panel Mount: Yes
  • Pitch: Mating Interface 3.00mm
  • Pitch" Termination Interface 3.00mm
  • Polarized to Mating Part" Yes
  • Stackable: No
  • Temperature Range: Operating -40° to +105°C
