Micron Wiring, Electrical and PCB Kit

$120.00 USD
In Stock Pre order Out of stock

Kit includes DIY wire harness for standard or umbilical Micron wiring, cooling, PCB's and electrical hookups. UL1332 200°C 300V FEP Single stranded wire: 30AWG TS Copper:7/0.10mm OD:1.0mm Black 1.5m x 1...

Vendor: dfh.fm
SKU: 5775912323
Barcode: 8484503696311
Availability : In Stock Pre order Out of stock
Description

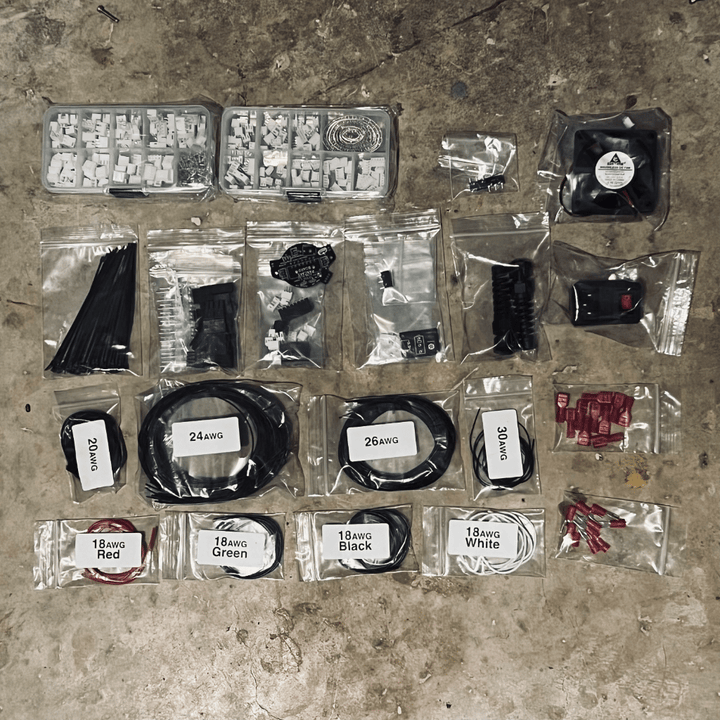

Kit includes DIY wire harness for standard or umbilical Micron wiring, cooling, PCB's and electrical hookups.

UL1332 200°C 300V FEP Single stranded wire:

  • 30AWG TS Copper:7/0.10mm OD:1.0mm Black 1.5m x 1
  • 26AWG TS Copper:7/0.16mm OD:1.15mm Black 1.5m x 6
  • 24AWG TS Copper:7/0.20mm OD:1.25mm Black 1.5m x 18
  • 20AWG TS Copper:19/0.19mm OD:1.6mm Black 1.5m x 2
  • 18AWG TS Copper:19/0.23 OD:1.83mm Black 1m x 2
  • 18AWG TS Copper:19/0.23 OD:1.83mm Green 1m x 1
  • 18AWG TS Copper:19/0.23 OD:1.83mm White 1m x 1
  • 18AWG TS Copper:19/0.23 OD:1.83mm Red 1m x 1

Connectors:

  • Molex Micro-Fit connector kit x 1
  • JST XH connector kit x 1
  • JST PH connector kit x 1

Electrical:

  • Insulated fork spade connectors x 10
  • Insulated female spade crimp terminals x 10
  • IEC320 C14 Inlet Power Socket With Red Rocker Switch x 1
  • 5x20mm 10A fuse x 1

Cooling:

  • Gdstime 6020 Dual Ball 24v fan x 1

PCB/Endstops:

  • Pancake stepper toolhead board x 1
  • Z endstop board x 1
  • Omron D2F-5L x 3

Misc:

  • Zip Ties 2mmx100mm x 40
  • M12.5 cable gland x 2
