Micron DOOM Kit

$525.00 – $575.00

Contents: category item count bed 180mm black, annodized ultra-flat bed, by Lighweight Labware and DFH 1 bed 180mm Double sided, tecture coated/smooth PEI, spring steel sheet, featuring the Micron logo on...

Micron DOOM Kit Micron DOOM Kit
$525.00
Micron DOOM Acrylic Panels Micron DOOM Acrylic Panels
$90.00
Micron DOOM ACM panels Micron DOOM ACM panels
$80.00
Micron Linear Rails Kit Micron Linear Rails Kit
$160.00 $130.00
Micron Heater and Power Supply Bundle Micron Heater and Power Supply Bundle
$115.00
Subtotal: $970.00 $940.00
Add to Wishlist
Print Area: 120mm, 180mm
Frame Color: White, Definitely Not Space Grey, Black, Purple, Hot Fucking Pink
Vendor: dfh.fm
SKU: 2929633269
Barcode: 6590077296092
Availability : In Stock Pre order Out of stock
Description

Contents:

category item count
bed 180mm black, annodized ultra-flat bed, by Lighweight Labware and DFH 1
bed 180mm Double sided, tecture coated/smooth PEI, spring steel sheet, featuring the Micron logo on the smooth side 1
bed 192mm magnetic sheet 1
extruder PTFE/FEP tube 2.5mm ID, 4mm OD, 1m length 1
extruder PTFE tube 2mm ID, 4mm OD, 300mm length 1
extruder PC4-M10 pneumatic fitting 1
extruder ECAS04 press fit bowden fitting 1
extruder Orange clip for ECAS04 1
extruder RNC coated BMG Clone Gears, by Runice 1
motion F623-2RS Bearing 32
motion 625 2RS Bearing 8
motion 5x47-50mm Shaft - Grind Flat 4
motion KGLM-03 Bearings, by Igus 4
motion GT2 16T Pulley (5mm bore, 6mm wide) 14
motion GT2 Belt Loop (6mm wide) - 188mm 4
motion GT2 Open Belt LL-2GT-6 (6mm wide) 6
cooling Gdstime 6020 axial fan 1
cooling Gdstime 3010 axial fan 1
cooling Gdstime 3010 blower fan 2
wiring and electrical 1m Igus Chainflex® CF113-007-D 1
wiring and electrical 10m 24awg FEP Black 1
wiring and electrical 1m each 18awg FEP Black, Red, White, Green 1
wiring and electrical Fork spade terminal ten pack 1
wiring and electrical Female spade terminal ten pack 1
wiring and electrical M12.5 cable gland 2
wiring and electrical Molex Micro-Fit 3.0 connector kit 1
wiring and electrical JST-XH connector kit 1
wiring and electrical C14 inlet with fuse 1
wiring and electrical Fuse two pack 1
wiring and electrical Slim zip tie 40 pack 1
control BigTreeTech Manta 1
control BigTreeTech CB1 Pi replacement 1
control BigTreeTech TMC2209 6
control BigTreeTech EBB36 CAN toolhead board 1
control BigTreeTech U2C CAN interface board 1
motors Motors kit by DFH 1

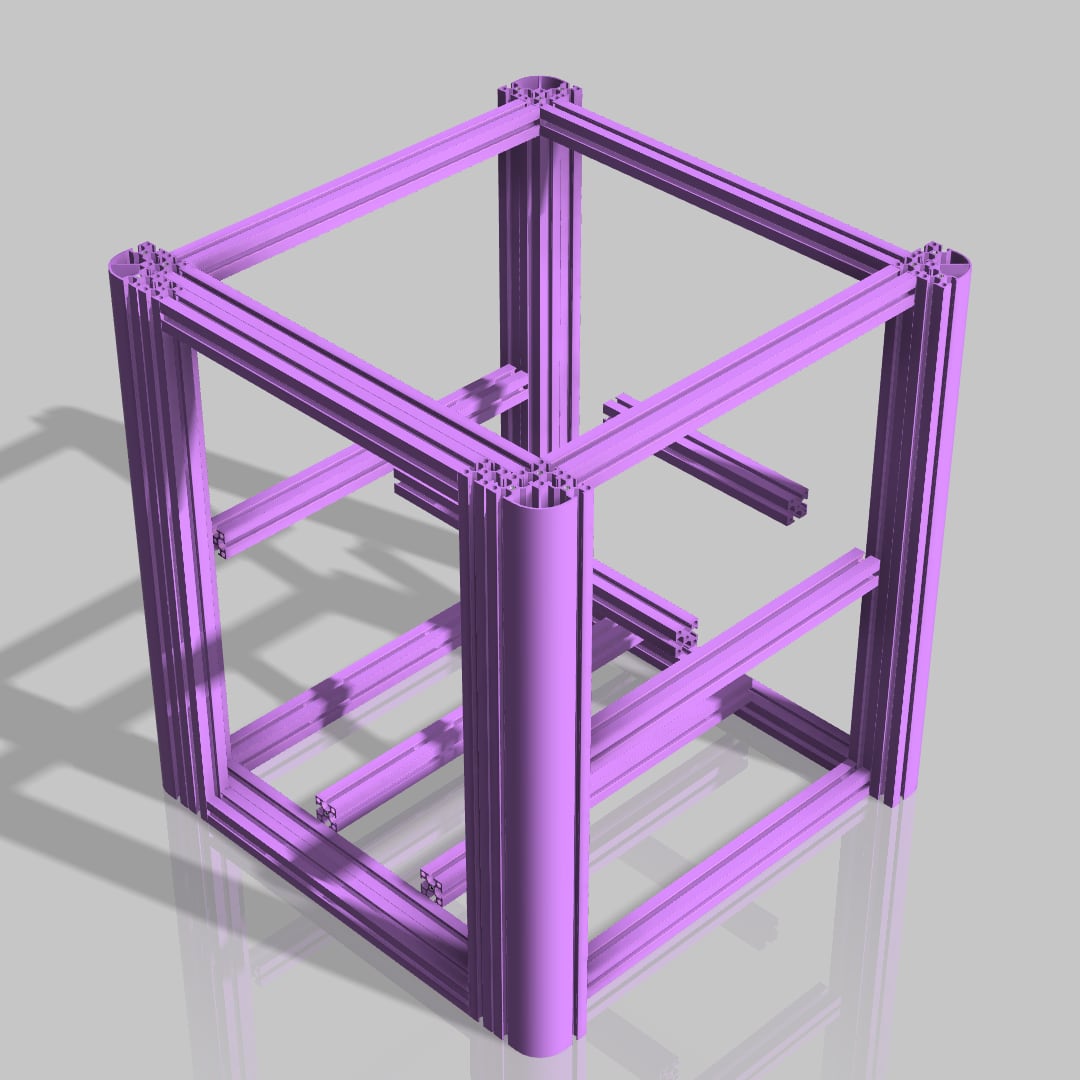

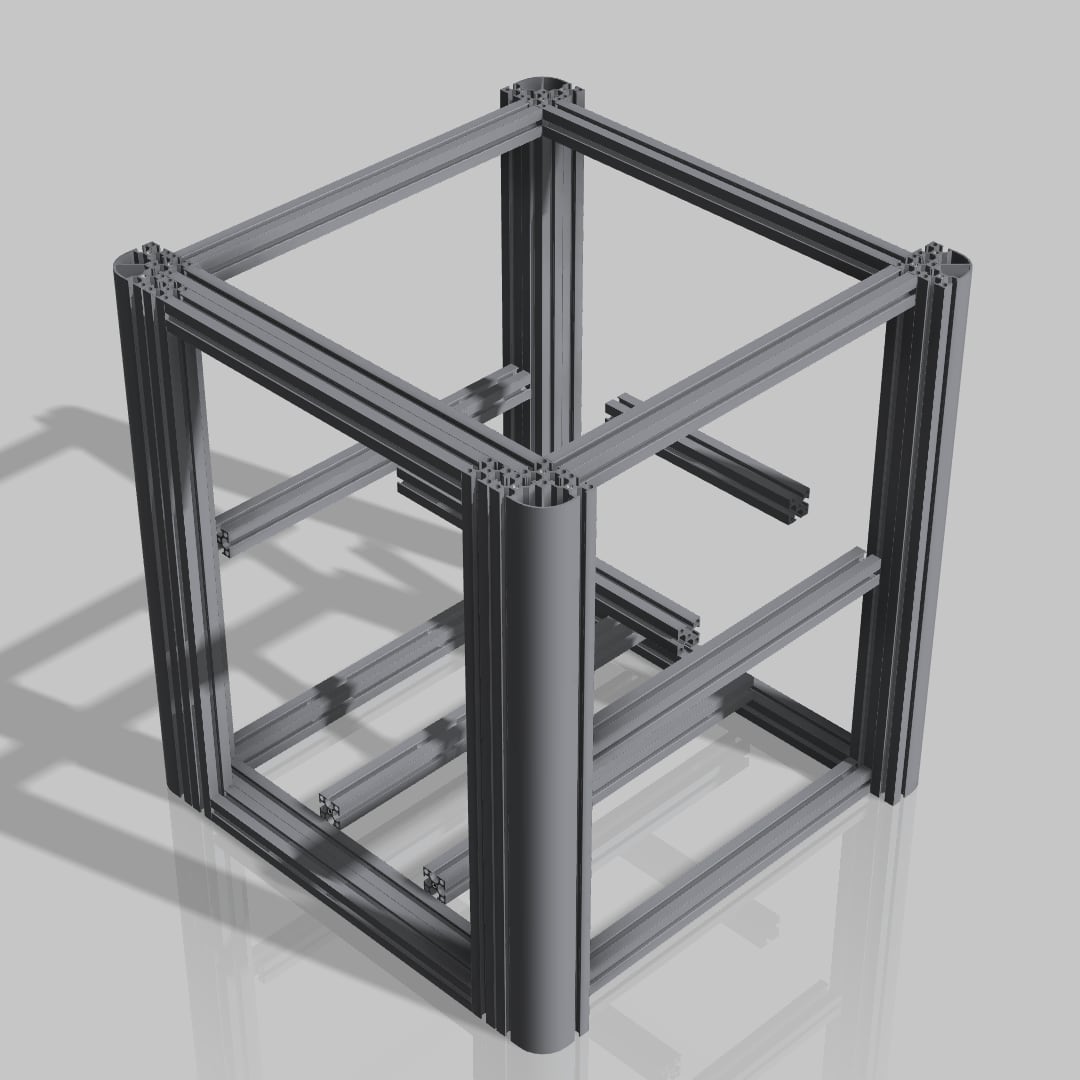

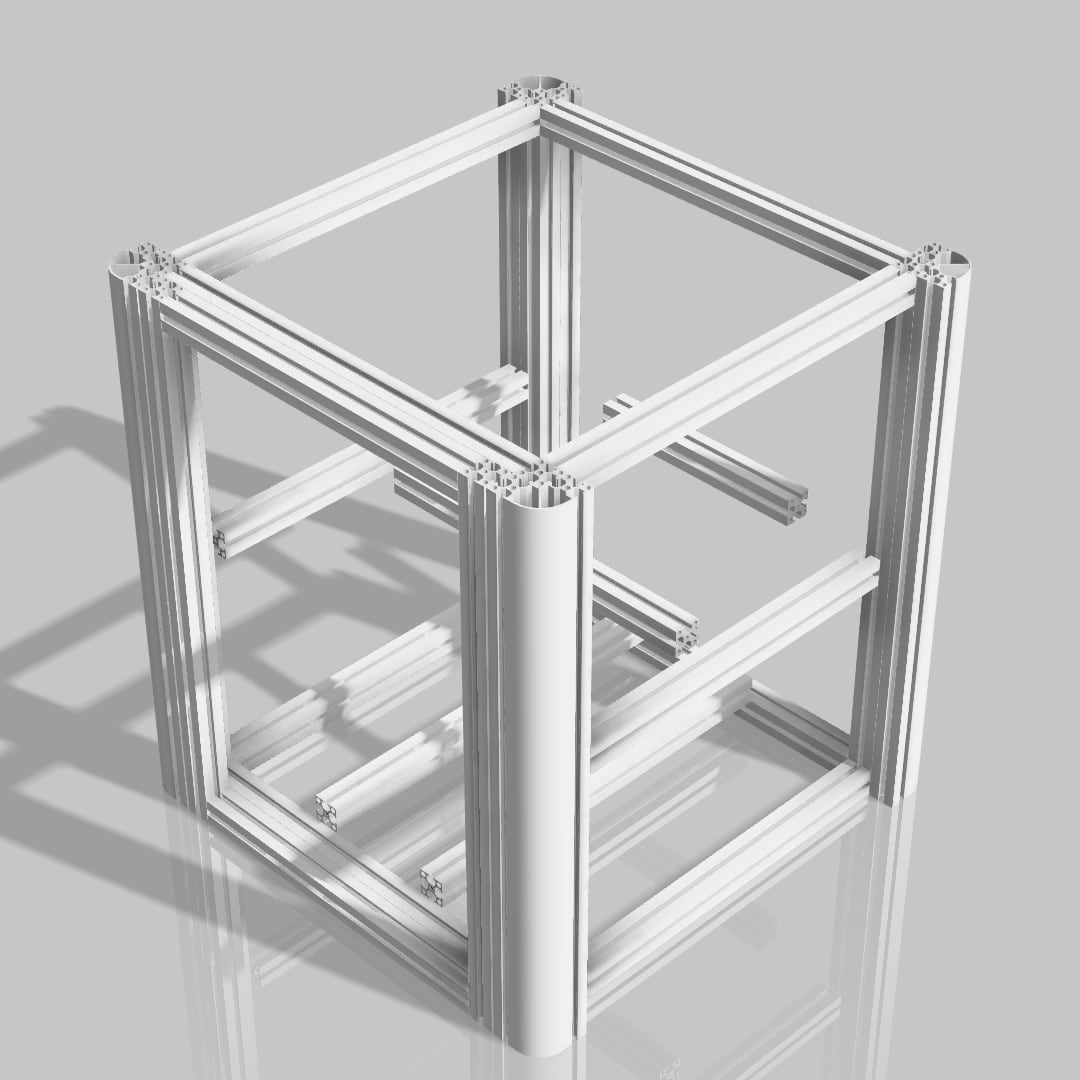

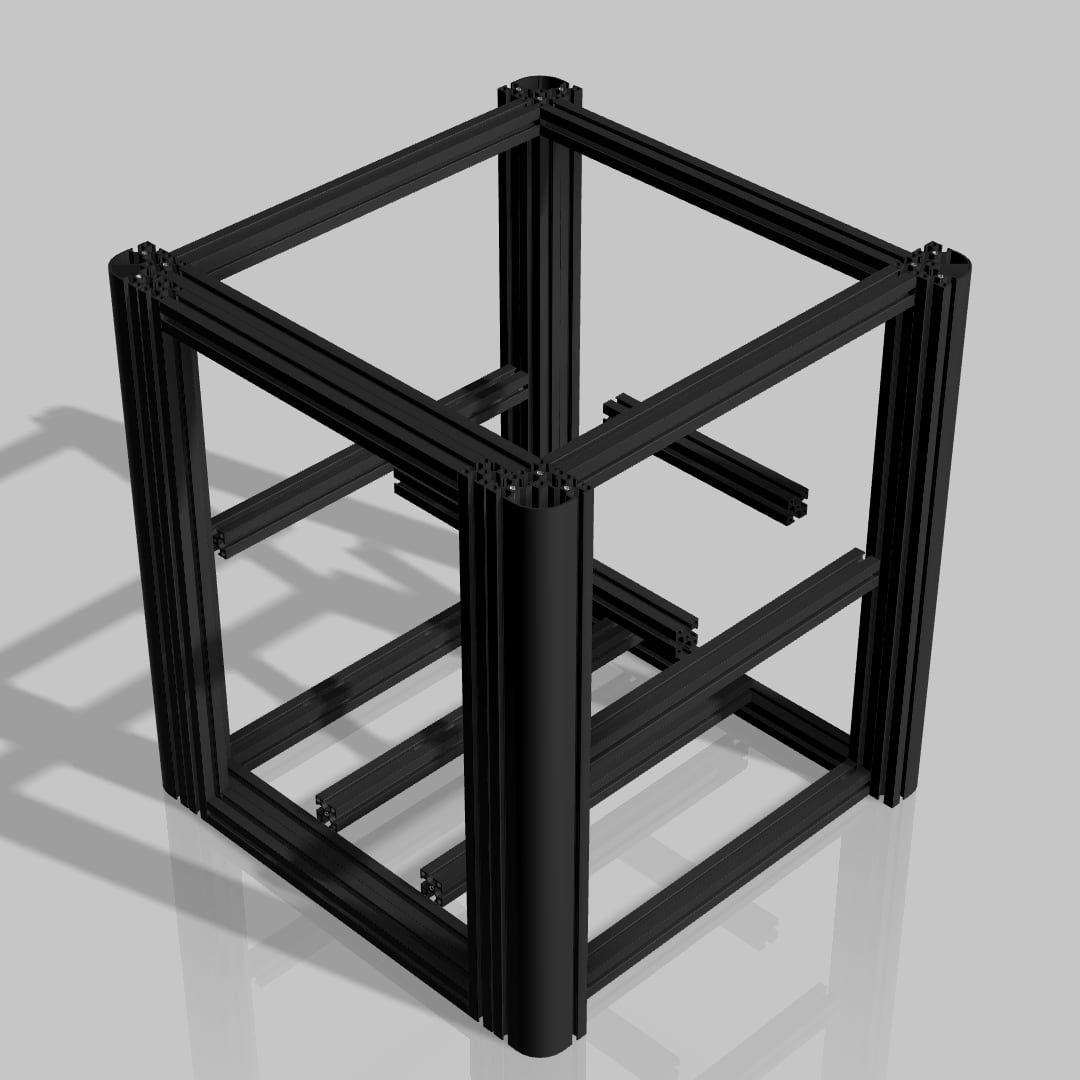

frame Frame kit, by Lightweight Labware and DFH 1
vibration management EPDM rubber feet. Direct clones of Misumi C-30-RK-3215. 4
fasteners kit Complete fasteners kit by DFH 1
misc Best sticker ever 1
misc Micron keychain 1

There are extra extrusion and double panels, so these things aren't gonna be light. I will try to keep shipping costs as low as possible.



Additional Information
Print Area

120mm, 180mm

Frame Color

White, Definitely Not Space Grey, Black, Purple, Hot Fucking Pink
