Double Folded Ascender Extruder Kit

$74.99 USD $59.99 USD Save 20%
Shipping calculated at checkout.
Material: Black Oxide Coated Steel
Kit Type: With Motor

Pickup available at Home Office

Usually ready in 24 hours

Double Folded Ascender is a take on the "popular" worm direct-driven extruder system. It is available in a 20:1 variant.

The original concept was originally developed by Trails and RentableSocks back in ~March 2019, it has since evolved many times and RentableSocks has now taken over development on this extruder full time.

More info here.

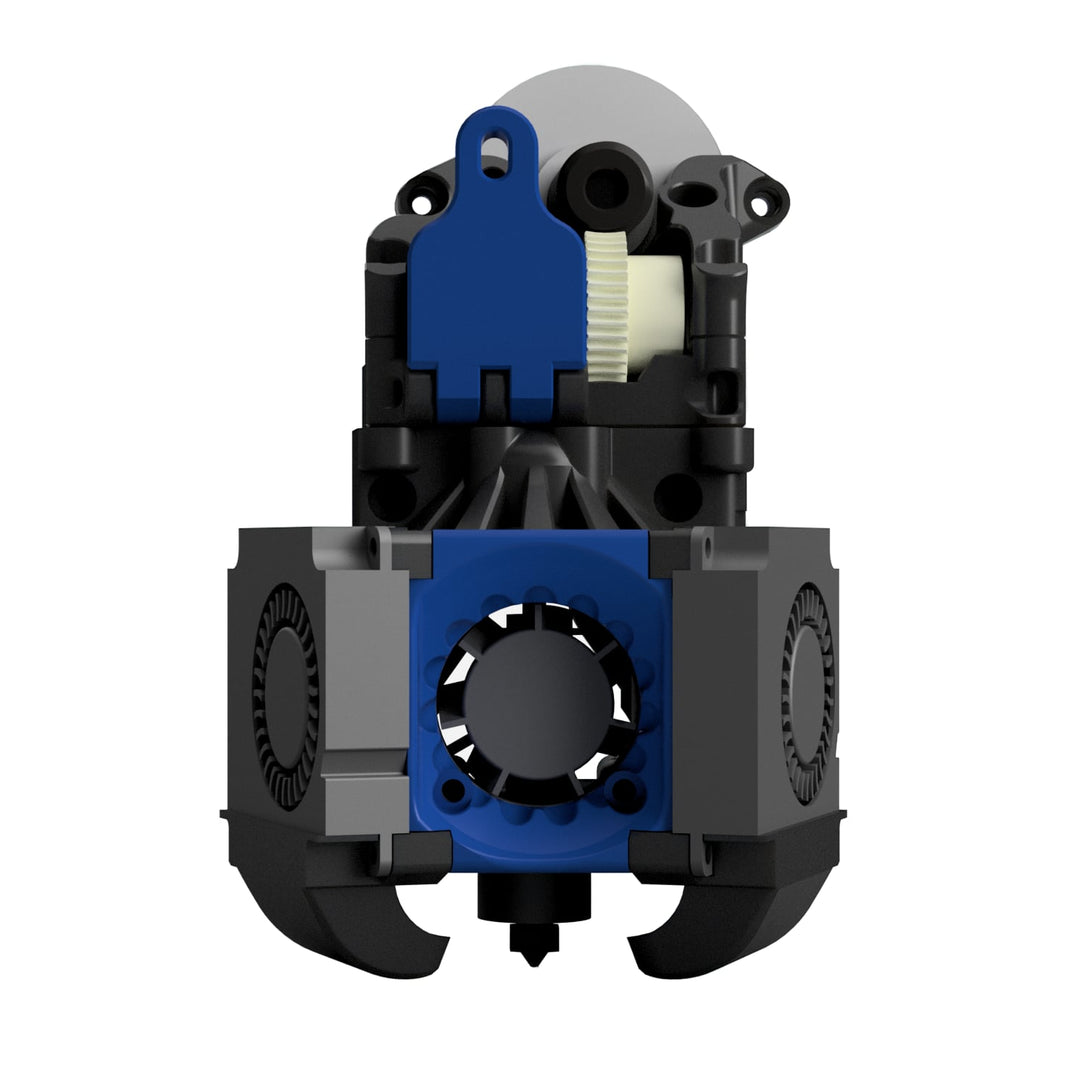

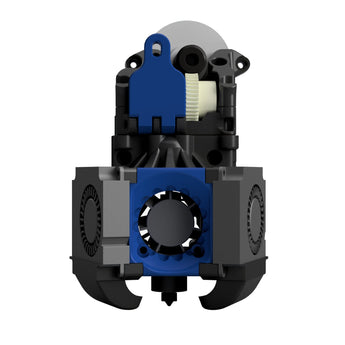

Reference image includes optional XOL.

Kit includes:

item required included
M3x35 SHCS A2  3 4
M3x25 SHCS A2 2 3
M3x12 SHCS A2 2 3
M3x20 SHCS A2 2 3
M3 Washer Steel 6 8
7x5x0.5mm Shim A2 7 10
M3 Heatset Brass with Black Nickel Coating 2 3
M4 Grub Screw 2 3
DFH 5x45mm G6 Shaft w/ D Flat Bearing Steel 1 1
Runice RNC Coated BMG Clone Gear Set (needle bearings included) 1 1
Runice 3x20 Shaft G6 Bearing Steel 1 1
Runice MR85-2RS 3 3
KHK DG0.5-40R1 1 1
KHK SW0.5-R2 1 1
LDO LDO-36STH17-1004AH Stepper Motor (optional) 1 1
Molex Micro-Fit 3.0 Male Pins 0 5
Molex Micro-Fit 3.0 Female Pins 0 5
Molex Micro-Fit 3.0 Male 4 Pin Single Row 0 1
Molex Micro-Fit 3.0 Female 4 Pin Single Row 0 1
JST PH Pins 0 5
JST PH 4 Pin Connector 0 1
JST XH Pins 0 5
JST XH 4 Pin Connector 0 1
3 in stock
Shipping & Returns

Worldwide shipping available. Most items ship within 24 hours. More information may be found on our shipping policy page.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E
E
There's a worm in my printer

Do you want the most gucci extruder out there? Do you like low PA values? Do you want to push filament with the force of one million earthworms? This here is the one. You better print the parts with something strong, because it has enough strength to tear itself apart if you don't give it the respect it deserves.

Don't you want the power of a worm inside your machine? Get one today.
