DFH Voron V2 Motors Kit

$124.99 USD
Shipping calculated at checkout.

Pickup available at 7723 Paraiso HVN

Usually ready in 24 hours

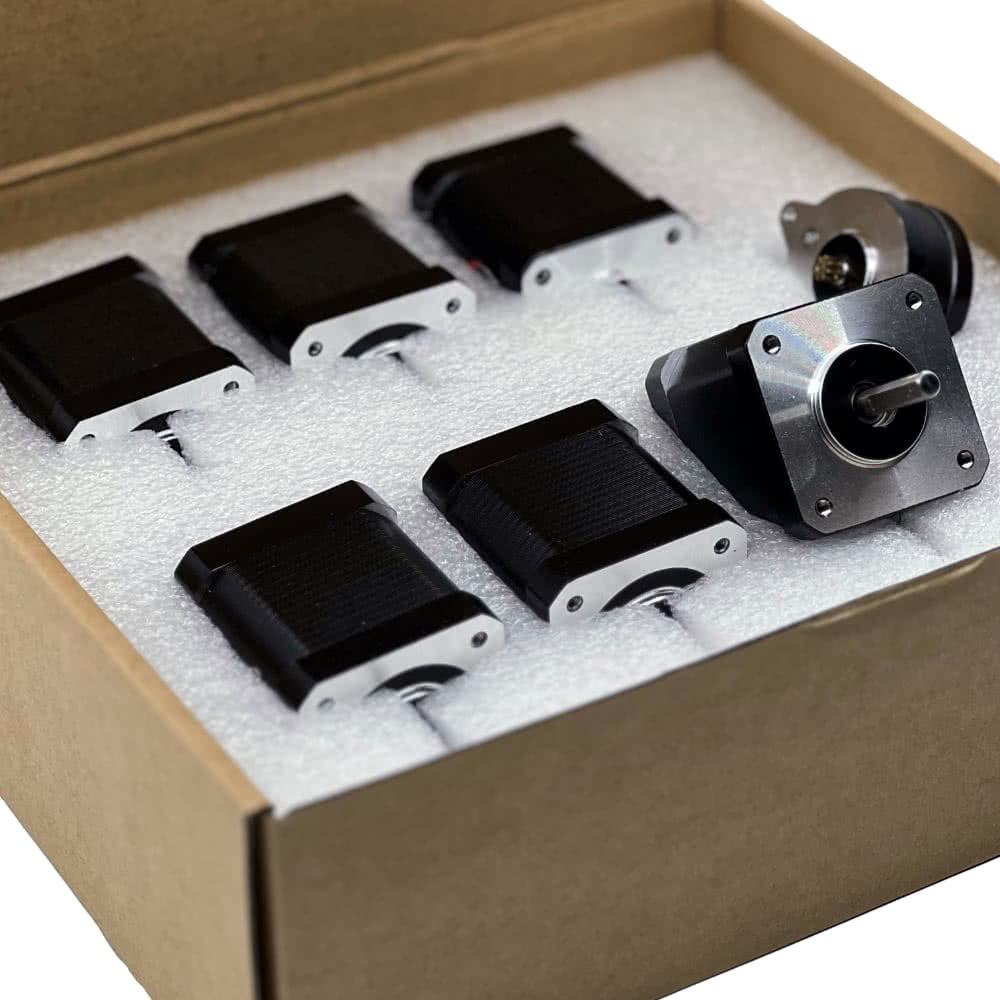

Seven part kit includes BOM Z and High temperature/High voltage ABE motors for Voron v2.

  • DFH-42HSC6406G-24B20-1500 x 2
    • Step Angle: 1.8±5%
    • Number of phases: 2
    • Rated Voltage: 3V
    • Rated Current: 2.5A
    • Winding Resistance: 1.2Ω±15% @ 20°C
    • Winding Inductance: 1.8±20% mH (1kHz)
    • Holding Torque: ≥580mN.m
    • Insulation Class: H
  • DFH-17HS19-2004S x 4
    • Step Angle: 1.8±5%
    • Number of phases: 2
    • Rated Voltage: 2.8V
    • Rated Current: 2A
    • Winding Resistance: 1.4Ω±15% @ 20°C
    • Winding Inductance: 3±20% mH
    • Holding Torque: 59Ncm
    • Insulation Class: B
  • DFH-G36HSY4405G-6DA-1500 x 1
    • Step Angle: 1.8±5%
    • Number of phases: 2
    • Rated Voltage: 2.1V
    • Rated Current: 1A
    • Winding Resistance: 2.4Ω±10% @ 20°C
    • Winding Inductance: 1.7±20% mH
    • Holding Torque: 110nN.m
    • Insulation Class: H

It's a sleeper, but this is a fucking hot kit. Don't miss out.

Shipping & Returns

Worldwide shipping available. Most items ship within 24 hours. More information may be found on our shipping policy page.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joseph Meier
Sleeper kit is an accurate descriptor.

I bought this kit a year and a half ago. Used the ABZ motors in my v2 which have been working dutifully ever since. I never gave the E motor a second thought since I had an LGX on that machine. Recently I needed a motor with more beef than the 17mm deep 10T nema 14 pancake that was on my Sherpa mini could put out. I’ve bought too much junk over the years and built entirely too many printers so instead of ordering a new motor I dug through my bin of steppers and found the E motor from this kit sitting there brand new. Slapped it on the Sherpa and it goes brrr real well. Definitely more torquey.
