Black SSR Mount for DIN Rail

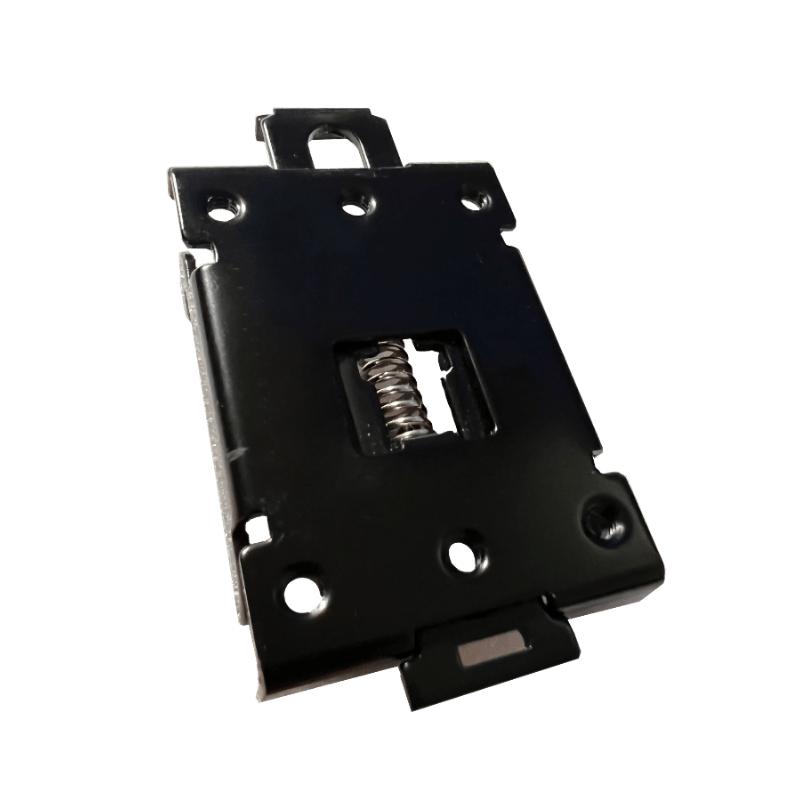

Black steel DIN-rail mounting clip for chassis-style solid state relays. This bracket gives an SSR a clean snap-on mounting point for a standard DIN rail, with a spring-release latch and multiple screw holes for fastening the relay body.

Why this one

• Metal bracket: stronger and more heat-tolerant than a printed plastic SSR clip.
• Spring-loaded release: snaps onto DIN rail and comes back off without fighting the whole electronics bay.
• Black finish: matches black electronics panels and pairs cleanly with our Black DIN Rail.

Specifications

• Use: DIN-rail mounting adapter for SSR / solid state relay bodies
• Rail fit: standard DIN rail installations
• Material: black-finished metal with steel spring latch
• Mounting: multiple relay screw holes visible on the bracket face
• Includes: one black SSR DIN-rail mount

Intended use

Use it in Voron, Trident, RatRig, Micron, Salad Fork, or other 3D-printer electronics bays where an SSR needs to live on DIN rail instead of loose on a back panel.

Gotchas

• This is the mount only — SSR and DIN rail are not included.
• Check your relay's hole spacing against the bracket before committing a layout.
• For low-current PCB relay modules, use board standoffs or a module-specific mount instead.
