Annex Engineering Reinforced Gantry Mounts
From the repo: This new z joint has been developed for Redoubt but is backwards compatible with V2.2 and V2.4. The main advantage being that the gantry is now 13mm closer...
From the repo:

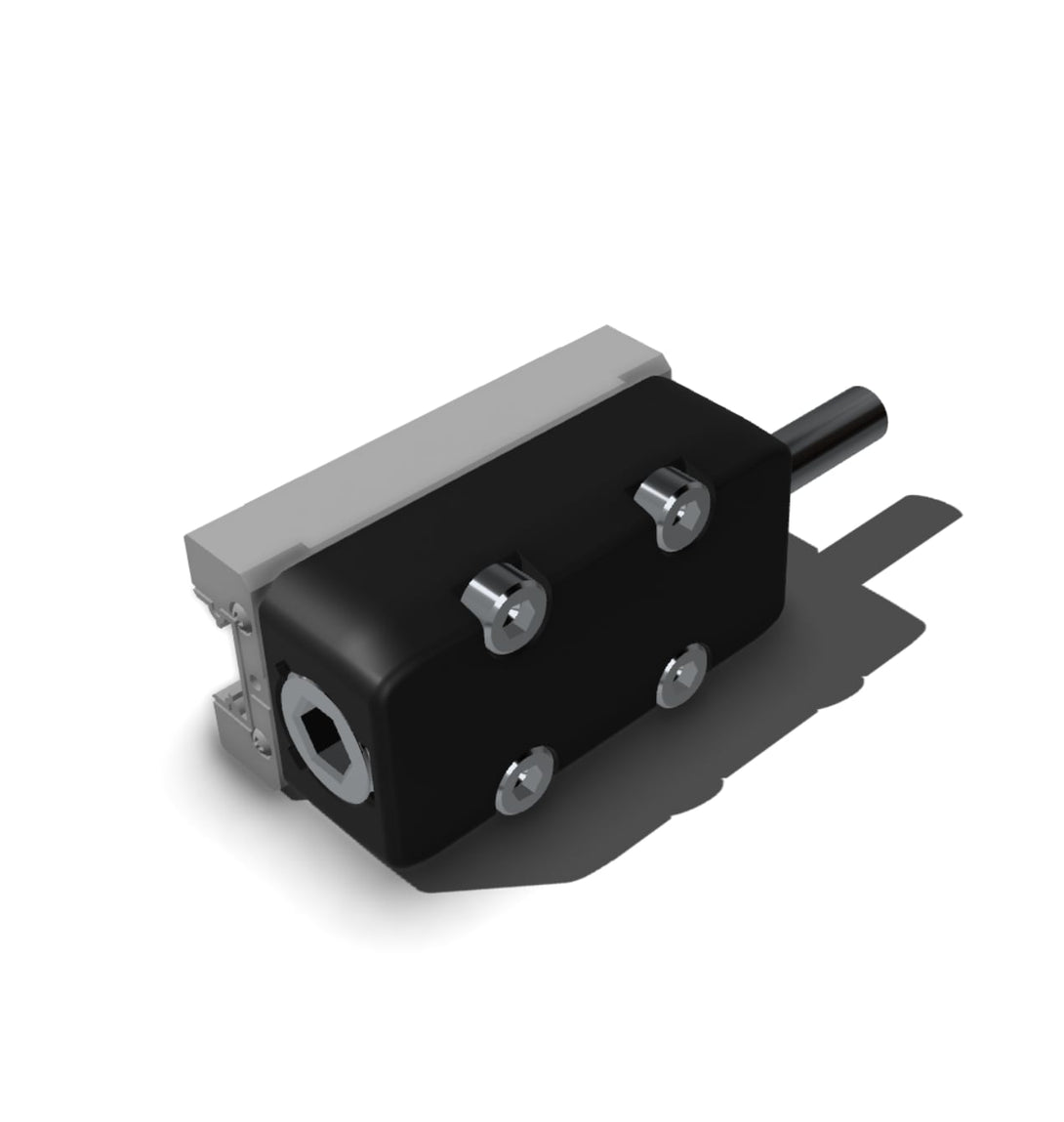

This new z joint has been developed for Redoubt but is backwards compatible with V2.2 and V2.4. The main advantage being that the gantry is now 13mm closer to the linear rails. Internal testing has shown that there is a noticeable improvement and less ringing for the Y axis. The ball head screw also allows the gantry to move smoothly in the printed part in comparison to the old design where layer lines rubbed each other. The pre-tensioning mechanism allows you to have zero play in the joint. The belt clips don’t have to come loose to swap the z joint and lastly due to its compact size full travel of the linear rails is possible. Compatible with a 0.6 nozzle and 0.3LH.
Kit includes:
| item | required | included |
|---|---|---|
| 02152 ball head screws (stainless on both kits) | 4 | 5 |
| M10x20 Grub Screw (flat end) | 4 | 5 |
| M3x12 SHCS | 16 | 17 |
| M3x16 SHCS | 4 | 5 |
| M3x20 SHCS | optional | 3 |
| 5x10x1 shim | 3 | 5 |
This is enough for all 4 gantry corners plus extras. More info may be found in the repo.
| Material |
Black Oxide, Stainless Steel |
|---|
